Featured Industrial Compression Units
Premium Oil-Free Rotary Screw & Scroll Solutions Engineered for Global Manufacturers

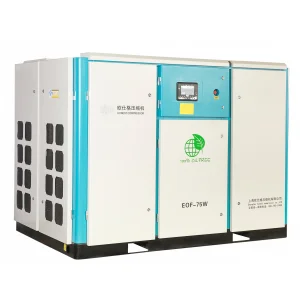

China Honest Compressor - EOF series Oil-Free Dry Type Screw Compressor | 100% Oil-Free PM VFD
View Product Spec

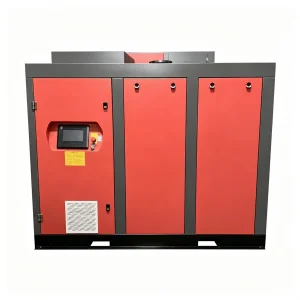

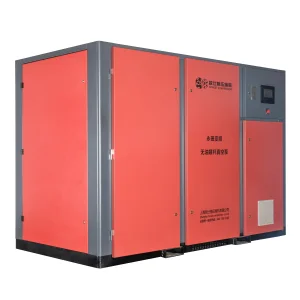

OEM High Quality Screw Vacuum Pump Permanent Magnet Frequency Conversion Progressive Pump
View Product Spec

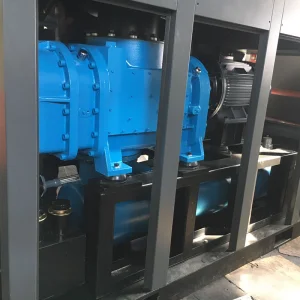

OEM Industrial Oil Free VSD Screw Air Blower / Vacuum Pump With Inverter and PM Motor
View Product Spec

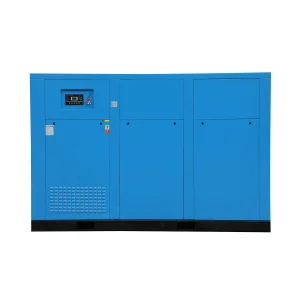

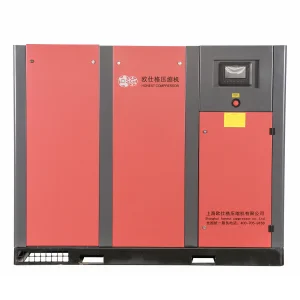

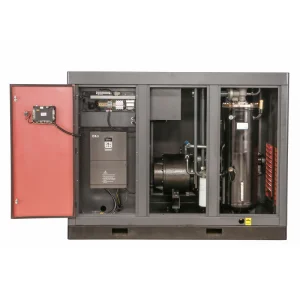

China 110Kw/150Hp Two-Stage Rotary Screw Air Compressor PM Variable Frequency 380V
View Product Spec

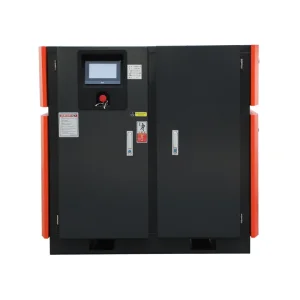

China Horizontal Two-Stage Pressure Screw Air Compressor Electric Compressor Price
View Product Spec
Technical Architecture of Rotary Scroll Compression
A Deep-Dive into Orbital Wrap Kinematics, Zero-Contamination Fluid Dynamics, and Thermodynamic Efficiency
Rotary scroll compressors represent a pinnacle of positive-displacement compression technology. Unlike traditional reciprocating piston compressors that suffer from pulsating flow and high mechanical friction, or rotary screw units that depend on complex liquid-injection sealing in lower horsepower ranges, rotary scroll systems operate using two intermeshing spiral wraps: a stationary scroll and an orbiting scroll driven by an eccentric shaft.
Key Engineering Advantage: Rotary scroll technology eliminates clearance volume re-expansion losses entirely. By creating continuous crescent-shaped compression pockets that shrink progressively toward the center discharge port, rotary scroll air compressors achieve dynamic volumetric efficiencies exceeding 95% while delivering 100% oil-free air per ISO 8573-1 Class 0.
Comparative Thermodynamics & Technology Matrix
When selecting gas or air compression equipment for sensitive industrial processes, enterprise engineering teams must evaluate mechanical friction, thermal dispersion, sound pressure levels, and lifecycle maintenance intervals. Below is an engineering benchmark comparison among major positive-displacement compression architectures:
| Performance Parameter | Rotary Scroll Compressor | Rotary Screw Compressor | Reciprocating Piston |
|---|---|---|---|
| Oil Carry-Over Risk | Absolute Zero (100% Dry / Class 0) | Low to Zero (Depends on Separator) | High (Oil-lubricated) / Medium |
| Noise Level (dBA) | 48 – 62 dBA (Ultra-Quiet) | 65 – 75 dBA | 80 – 95+ dBA (High Vibration) |
| Moving Mechanical Parts | 1 Orbiting Component (Low Friction) | 2 Counter-rotating Rotors | Connecting Rods, Valves, Pistons |
| Part-Load Turndown Efficiency | Excellent (Multi-Scroll Modular Cycling) | High with VFD / Modulating Valve | Poor (Unload Cycling Losses) |
| Vibration Amplitude | < 0.5 mm/s (Balanced Centrifugal Inertia) | Medium (< 2.5 mm/s) | Severe Pulse Vibration |
Technology Roadmap & Future Outlook (2025–2030)
Pioneering Next-Gen Materials, Edge-AI Analytics, and Ultra-Low GWP Integration
Permanent Magnet VFD & Dual-Wrap Synchronization
The convergence of IE5 Ultra-Premium Efficiency Permanent Magnet Synchronous Motors (PMSM) with dual-inverter variable frequency drives enables precise rotary scroll speed matching. By dynamic adjustment of motor RPM based on real-time pressure transducers, off-load power consumption drops to absolute zero during standby periods.
AIoT Predictive Maintenance & Diagnostics
Next-generation scroll systems exported from China integrate localized microprocessors with Modbus/CANbus connectivity. Embedded vibration sensors and dynamic thermal mapping monitor scroll tip seal wear in real time, alerting maintenance managers weeks prior to operational degradation.
Advanced Ceramic Coatings & Self-Lubricating Polymers
Material science advancements in high-precision PTFE blend tip seals, diamond-like carbon (DLC) surface treatments, and anodized aluminum wrap alloys allow scroll units to operate at higher ambient temperatures (>45°C) without physical clearance expansion or efficiency drops.
Macro-Industry Solutions & Application Scenarios
Tailored Clean Air Infrastructure for Critical Production Environments
Medical, Dental & Pharmaceutical Processing
In hospital breathing air systems, surgical tools, and pill coating units, trace oil hydrocarbon contamination is catastrophic. Rotary scroll compressors deliver ISO 8573-1 Class 0 oil-free air without condensate treatment complications. Multi-scroll modular configurations ensure built-in redundancy—if one module undergoes routine service, remaining scrolls adjust to maintain uninterrupted clinical pressure.
Semiconductor Packaging & Electronics Manufacturing
Microchip assembly lines require continuous pneumatic actuation free from oil mist that could fog optical lenses or degrade wafer surfaces. Rotary scroll compressors operate with near-zero pressure pulsation, shielding sensitive mass flow controllers and pneumatic pick-and-place robotics from pressure ripple interference.
Food Processing & Beverage Bottling
From nitrogen generation feed air to PET blow-molding purge systems, clean air prevents batch spoilage and regulatory non-compliance. China's scroll compressor solutions incorporate anti-bacterial stainless steel air receivers and multi-stage desiccant drying packages to guarantee pressure dewpoints down to -40°C/-70°C PDP.
EV Lithium Battery Production & Precision Coating
Dry-room battery cell manufacturing demands ultra-dry, oil-free pneumatic power. Rotary scroll systems prevent cross-contamination in cathode coating, electrolyte injection, and cell sealing machinery, helping battery gigafactories minimize scrap rates and meet stringent safety standards.
China Industry 4.0: Supply Chain Resilience & Manufacturing Depth
Combining Advanced CNC Precision Machining with World-Class Quality Assurance in Shanghai
China’s compressed air manufacturing ecosystem has evolved from localized assembly to fully integrated Industry 4.0 production hubs. Located in Jiading District, Shanghai, our production complex utilizes high-precision 5-axis CNC machining centers to mill scroll wrap profiles down to micron-level tolerances. This extreme precision minimizes internal air leakage, maximizing volumetric efficiency without relying on liquid seals.
Through complete vertical supply chain integration—encompassing precision casting, dynamic balancing, automated motor winding, digital twin electrical testing, and full-load run-in inspection—China exporters offer unprecedented cost-performance ratios without compromising reliability or operational longevity.
Global Enterprise Procurement & Regulatory Compliance
Standardized Quality Engineering Tailored for OEM/ODM Buyers Worldwide
International Certification Framework
Exported scroll compressor units comply with stringent international codes, including European CE (MD/LVD/EMC directives), ISO 9001 quality systems, ISO 14001 environmental management, ASME pressure vessel codes, and PED standards for seamless customs clearance.
Global Voltage & Climate Adaptability
Units are fully customizable for global power grids: 220V/380V/400V/415V/460V at 50Hz or 60Hz. Heavy-duty tropicalized heat exchangers ensure continuous operation in extreme ambient conditions ranging from -20°C up to +50°C.
Complete OEM / ODM Packaging Options

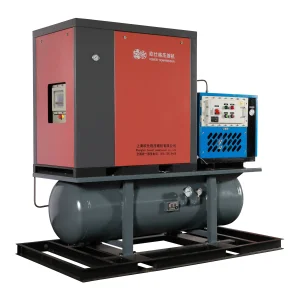

From private-label enclosure designs and multi-language PLC touchscreens (English, Spanish, French, Russian, Arabic) to 4-in-1 integrated skid packages (Compressor + Receiver Tank + Refrigerant Dryer + Precision Filters), we support comprehensive OEM/ODM contracts.
Specialized Rotary Screw & Vacuum Systems
Explore Extended Air Equipment Lines Available for Direct Export & Custom Contracting

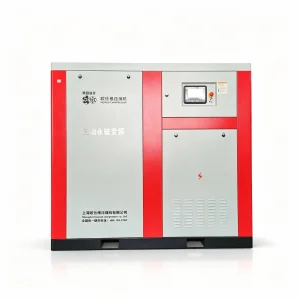

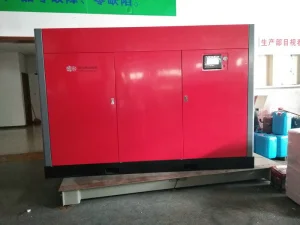

China Smart energy saving water lubricating 100% oil free screw air compressor fixed speed or VSDPM
View Product Spec
Frequently Asked Questions (Procurement & Technical FAQ)
In-Depth Answers for Engineering Consultants, Procurement Officers, and Import Distributors
