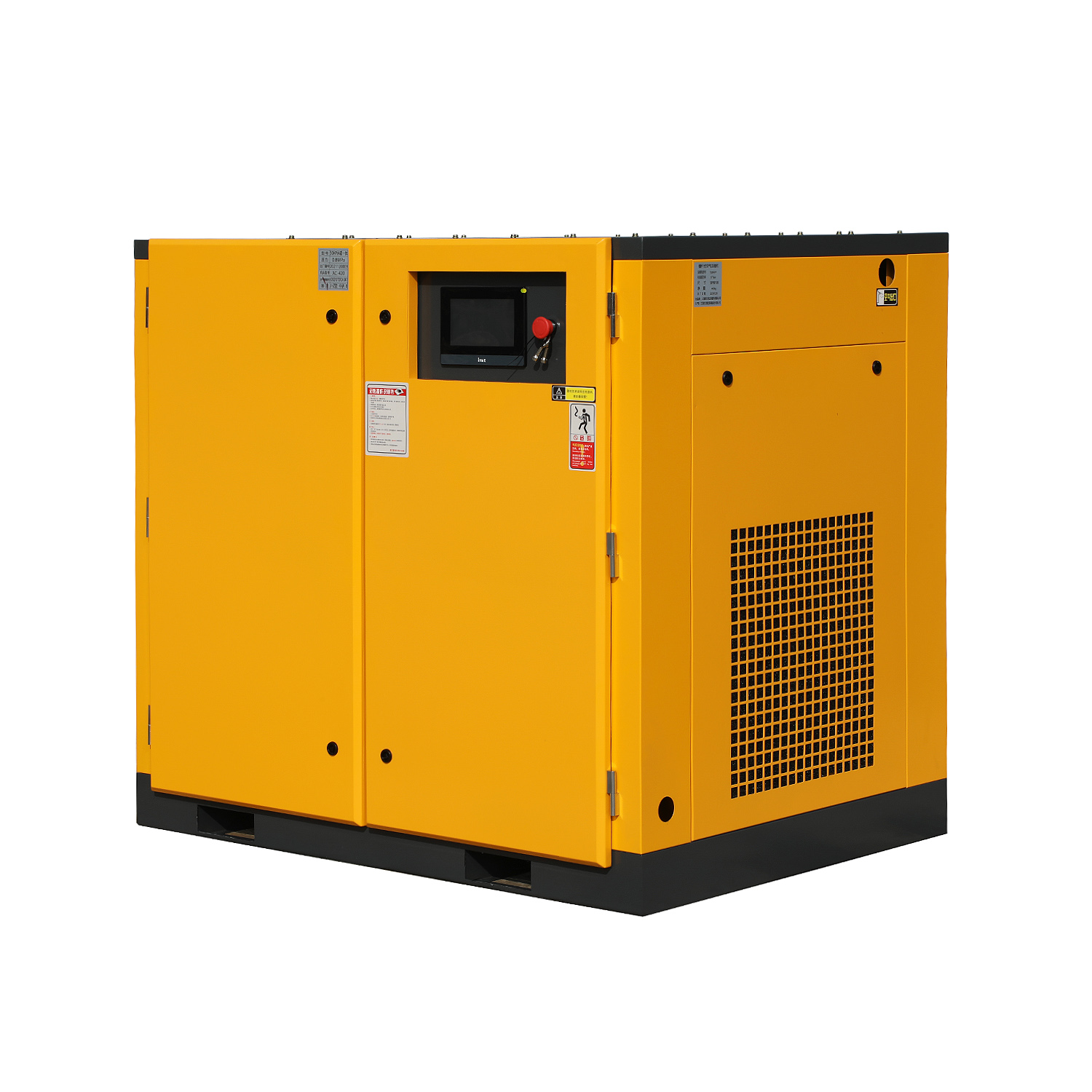

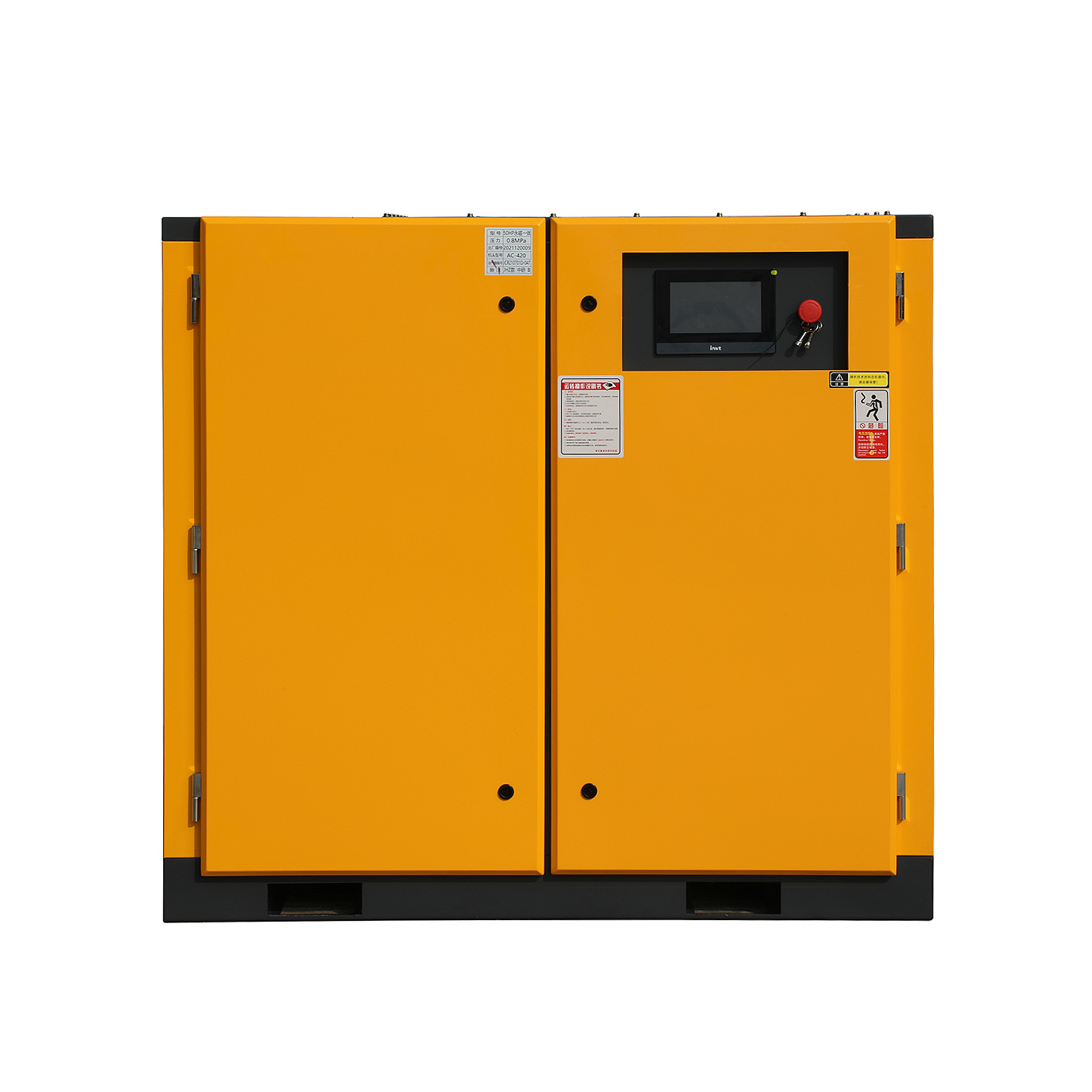

OEM Variable Frequency Drive Air Compressor 15kW Energy Saving Manufacturers, Exporters
Product Description
Energy-Saving VFD: Precision algorithms cut power use by 20–35% while stabilizing operating pressure at ±0.01 MPa.
Dust-Proof Motor: Oil-cooled double-shell motor engineered for robust reliability in harsh cement, mineral, and foundry environments.
Flexible Specification: 7.5–250kW range, working pressures up to 1.25MPa, and customizable voltage options for global deployment.
Proven Reliability: Supported by 21 years of expertise, 81°C constant temperature operation, ≤3 PPM oil content, a 12-month warranty, and full export support.
| Free Air Delivery | 2.5 m³/min @ 0.7MPa | 2.3 @ 0.8MPa | 2.1 @ 1.0MPa | 1.7 @ 1.25MPa |
|---|---|
| Motor Power | 15kW / 20HP |
| Start Method | Y-△ Starter |
| Voltage | 380V 3PH 50Hz (Customizable) |
| Drive Method | Direct Drive |
| Oil Content | ≤3 PPM |
| Connector | 1" |
| Noise Level | 68±2 dB(A) |
| Dimensions | 1100 × 750 × 920 mm |
| Weight | 267 kg |
≤ ambient temperature +8~15°C, ensuring dry, cool air for downstream equipment.
Yes, the durable motor structure with high-temperature NdFeB magnets (15+ years life) supports heavy-duty continuous running.

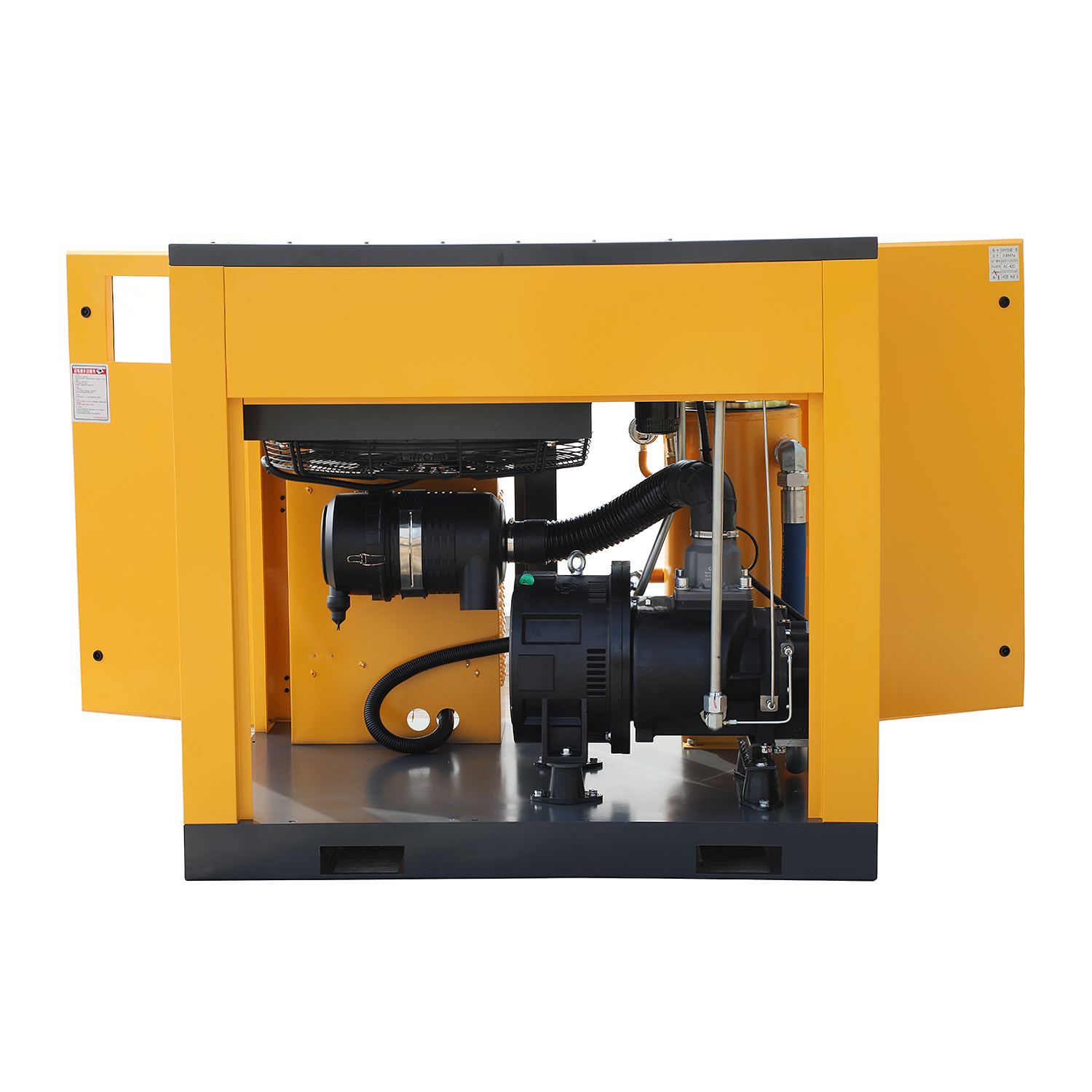

Regular filter replacement, oil changes every 4,000–6,000 hours, and cooler cleaning via the flip-door design.
The motor power is 15kW / 20HP (part of the 7.5–250kW range) with a standard voltage of 380V 3PH 50Hz, fully customizable for international voltage systems.
The unit measures 1100×750×920mm, weighs 267kg, and maintains an operating noise level of 68±2 dB(A).
The product is backed by 21 years of manufacturing expertise, includes a comprehensive 12-month warranty, and offers complete export technical support.
