Featured Industrial Screw Compressors & Vacuum Systems
Explore our engineered Original Design Manufacturing (ODM) lineup, designed for minimum power consumption per cubic meter of air delivery.
Macroeconomic State & Global Industrial Dynamics of Variable Speed Screw Compressors
In modern manufacturing plants, compressed air is frequently referred to as the "fourth utility," accounting for approximately 10% to 30% of total plant electrical consumption worldwide. As industrial economies transition toward decarbonization and Net-Zero mandates, the global market for industrial rotary screw compressors is undergoing a fundamental shift toward Variable Speed Drive (VSD) and Permanent Magnet (PM) technologies.
When evaluating air compressor procurement, the initial purchase price represents less than 15% of the total cost incurred over a 10-year operational lifecycle. Maintenance and installation account for roughly 10%, while electrical consumption dominates the remaining 75%. Traditional fixed-speed compressors operate on a crude load/unload cycle: when system air pressure reaches its upper limit, the compressor unloads, consuming up to 30% of full-load power while producing zero compressed air.

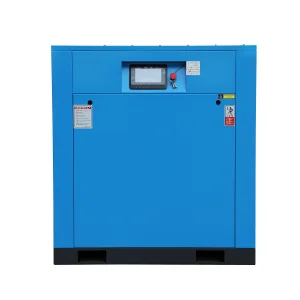

By contrast, an ODM Variable Speed Drive (VSD / VFD) Screw Air Compressor dynamically modulates motor RPM in real-time, matching exact volumetric air delivery (CFM or m³/min) to facility demand. This precise PID loop control maintains constant pressure stability (typically within ±0.1 bar), eliminating the wasteful pressure over-pressurization bands and zero-output idling phases that plague fixed-speed units.
Core OEM/ODM Custom Engineering Capabilities
As an established industrial variable speed screw compressor supplier, our manufacturing matrix provides complete bespoke engineering tailored to regional electrical standards, harsh operating environments, and stringent process cleanliness specifications.
We engineer oil-cooled and air-cooled Permanent Magnet synchronous motors featuring high-coercivity NdFeB magnets. Unlike standard induction motors, our PM motors retain >96% efficiency even down to 20% partial load speeds, operating without rotor copper losses.
- Zero rotor slip losses with synchronized lock
- IP55 & IP66 enclosure protection ratings
- Class H thermal insulation resilience
For high-pressure heavy industrial applications (7.5 to 13+ bar), our ODM factory integrates two-stage compression airends. By splitting overall compression pressure ratio across two distinct rotor sets with inter-stage cooling, mechanical stress is reduced while efficiency increases by 10-15%.
- Reduced internal rotor leakage flow
- Lower thermal compression strain per stage
- Extended bearing lifecycle exceeding 100,000 hrs

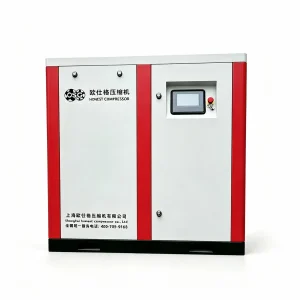

Where absolute air purity is mandatory, our water-lubricated oil-free technology uses purified water as the cooling and sealing medium inside the compression chamber. Water's high specific heat capacity guarantees near-isothermal compression without any hydrocarbon contamination risk.
- 100% oil-free certified under ISO 8573-1
- Corrosion-resistant stainless steel rotors
- Eliminates oil filter & separator disposal costs
Technical Performance & Architectural Comparison Matrix
| Feature / Parameter | Fixed-Speed Screw Compressor | Standard Inverter VFD Screw | ODM PM VFD Two-Stage Compressor |
|---|---|---|---|
| Motor Efficiency Class | IE2 / IE3 Induction Motor | IE3 / IE4 Induction / PM | IE4 / IE5 Permanent Magnet Motor |
| Turn-Down Capability | None (0% modulation, Load/Unload) | 40% – 100% Speed Range | 15% – 100% Ultra-Wide Speed Range |
| Pressure Control Band | ±0.5 to ±1.5 bar fluctuation | ±0.2 bar constant target | ±0.05 bar Precision PID Target |
| Specific Energy (kW/m³/min) | 7.8 – 8.5 kW/(m³/min) | 6.5 – 7.2 kW/(m³/min) | 5.2 – 5.9 kW/(m³/min) (Maximum Savings) |
| Inrush Current Spike | Up to 7x rated motor current | Soft start (1x rated current) | Ultra-Soft VFD Start (<1x rated current) |
Industry-Specific Field Integration & Deployment
Air compressor requirements vary drastically across global commercial sectors. Our ODM manufacturing engineering team provides customized skid packaging and custom control programming for specialized applications.
Contamination by even 0.01 mg/m³ of oil vapor can ruin complete batches of pharmaceutical tablets or packaged foodstuffs. Our ODM Oil-Free Water Lubricated Screw Air Compressors deliver ISO 8573-1 Class 0 certified air, operating cleanly in sterile cleanroom conditions without requiring downstream carbon adsorption filters.
In hazardous chemical manufacturing, explosive gas vapors mandate specialized safety enclosures. We engineer Ex d IIB T4 and Explosion-Proof integrated screw compressor packages equipped with remote PLC monitoring, stainless steel pneumatic piping, and anti-corrosive copper/nickel oil coolers.
Microchip fabrication requires non-fluctuating compressed air pressure for pneumatic robotics, wafer cleaning, and pick-and-place tools. Permanent magnet VFD control eliminates pressure ripple, preventing delicate wafer handler positioning micro-errors.
Municipal aeration basins require high volume, low-pressure compressed air continuously. Our Oil-Free PM VFD Screw Blowers replace inefficient Roots blowers, yielding up to 30% reduction in electricity consumption in continuous 24/7/365 municipal duty.
Vehicle assembly lines feature wild fluctuations in compressed air demand as welding robots and stamping presses cycling on and off. VFD PM screw compressors adjust motor RPM within milliseconds to match air demand transients seamlessly.
Air-jet looms consume vast quantities of dry compressed air at stable working pressures. Dual-stage variable speed compressors optimize energy per meter of woven fabric while integrated desiccant dryers prevent loom nozzle corrosion.
Technology Roadmap & Future Innovations (2025–2035)
The compressed air industry is evolving rapidly with the integration of AI-driven predictive telemetry, IoT smart controls, and eco-friendly mechanical design trends.
Modern ODM variable speed compressors are built with native Modbus RS485, CANbus, and IoT cellular gateway controllers. Algorithms analyze rotor vibration spectra, discharge temperature gradients, inverter thermal loading, and differential pressure across air filters in real time.
Instead of reactive routine servicing every 3,000 hours, maintenance is prescriptively scheduled based on true operational degradation, preventing catastrophic bearing failure and unexpected factory downtime.
Future compression efficiency is driven by mathematical optimization of male and female rotor lobe asymmetry (e.g., 5:6 and 6:7 profiles). By minimizing the triangular "blow-hole" clearance area between rotor lobes, internal back-leakage is drastically curtailed.
Furthermore, gearless direct-drive couplings directly integrate the PM motor rotor onto the male screw shaft, completely eliminating gear friction losses and belt slippage energy decay.
Up to 94% of electrical energy supplied to an air compressor is converted into thermal heat during the air compression process. Our factory OEM solutions incorporate integrated oil-to-water Heat Recovery Units (HRUs).
This allows factories to recover waste heat in the form of hot water (60°C to 80°C) for boiler preheating, facility space heating, process washing, or boiler feed water—transforming an operational power expenditure into a dual-utility heat generator.
Frequently Asked Questions (FAQ) — Engineering & Sizing
Expert guidance from our senior application engineers on technical selection, mathematical efficiency evaluation, and factory custom manufacturing.
SEC = Total Input Power (kW) / Actual Free Air Delivery (m³/min)
For example, if a 55 kW PM VFD compressor delivers 10.2 m³/min of free air at 8.0 bar pressure and draws 53.0 kW total electrical power at full load, its SEC is 5.19 kW/(m³/min). Lower numerical SEC values indicate superior mechanical and thermodynamic compression efficiency.
Water-lubricated oil-free compressors inject purified water directly into a single-stage stainless steel or polymer-ceramic rotor chamber. The water acts simultaneously as a lubricant, rotor dynamic seal, and internal thermal coolant, resulting in lower discharge temperatures, higher volumetric efficiency, and lower rotor maintenance cost over long duty cycles.
- Required Volumetric Flow Rate (CFM, m³/min, or L/sec).
- Target Working Operating Pressure (bar, MPa, or PSI).
- Site Electrical Utilities (Voltage: 220V/380V/400V/415V/440V/460V, Frequency: 50Hz or 60Hz, 3-Phase).
- Air Quality Purity Class according to ISO 8573-1 (Dust, Water dew point, and Residual Oil content).
- Ambient Site Conditions (Maximum ambient temperature, humidity %, and elevation altitude).
- Drive Preference (Fixed Speed, Single-Stage VFD, Two-Stage PM VFD, or Skid-Mounted All-in-One).
Permanent Magnet (PM) synchronous motors feature permanent rare-earth magnetic fields, eliminating electrical rotor excitation losses entirely. They maintain 95%+ motor efficiency down to 15-20% speed, run dramatically cooler, offer a compact mechanical footprint (up to 30% smaller), and deliver instantaneous torque response across the speed envelope.
Because cooler air requires significantly less mechanical energy to compress (approaching ideal isothermal compression), two-stage units reduce overall shaft power requirements by 10% to 15% for the exact same volumetric air yield.
Industrial Screw Blowers, Vacuum Pumps & VFD Compressors
Explore the remaining technical product lineup manufactured at our ODM factory facility for specialized heavy duty processes.
Partner with a Premier ODM Variable Speed Screw Compressor Factory
Whether you require customized OEM branding, specialized high-ambient cooling skids, or ISO Class 0 oil-free air solutions, our application engineering team stands ready to design your optimal compressed air infrastructure.
