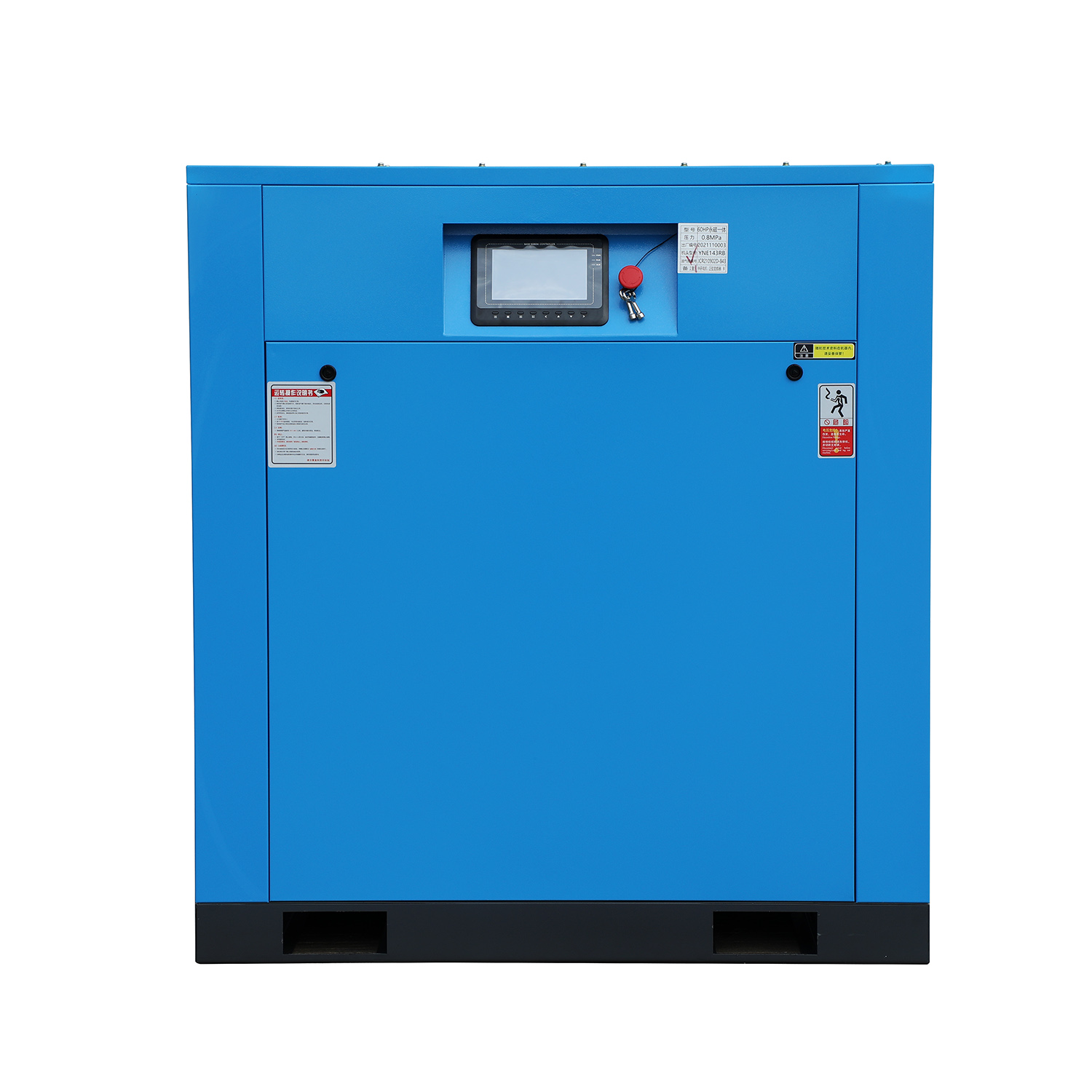

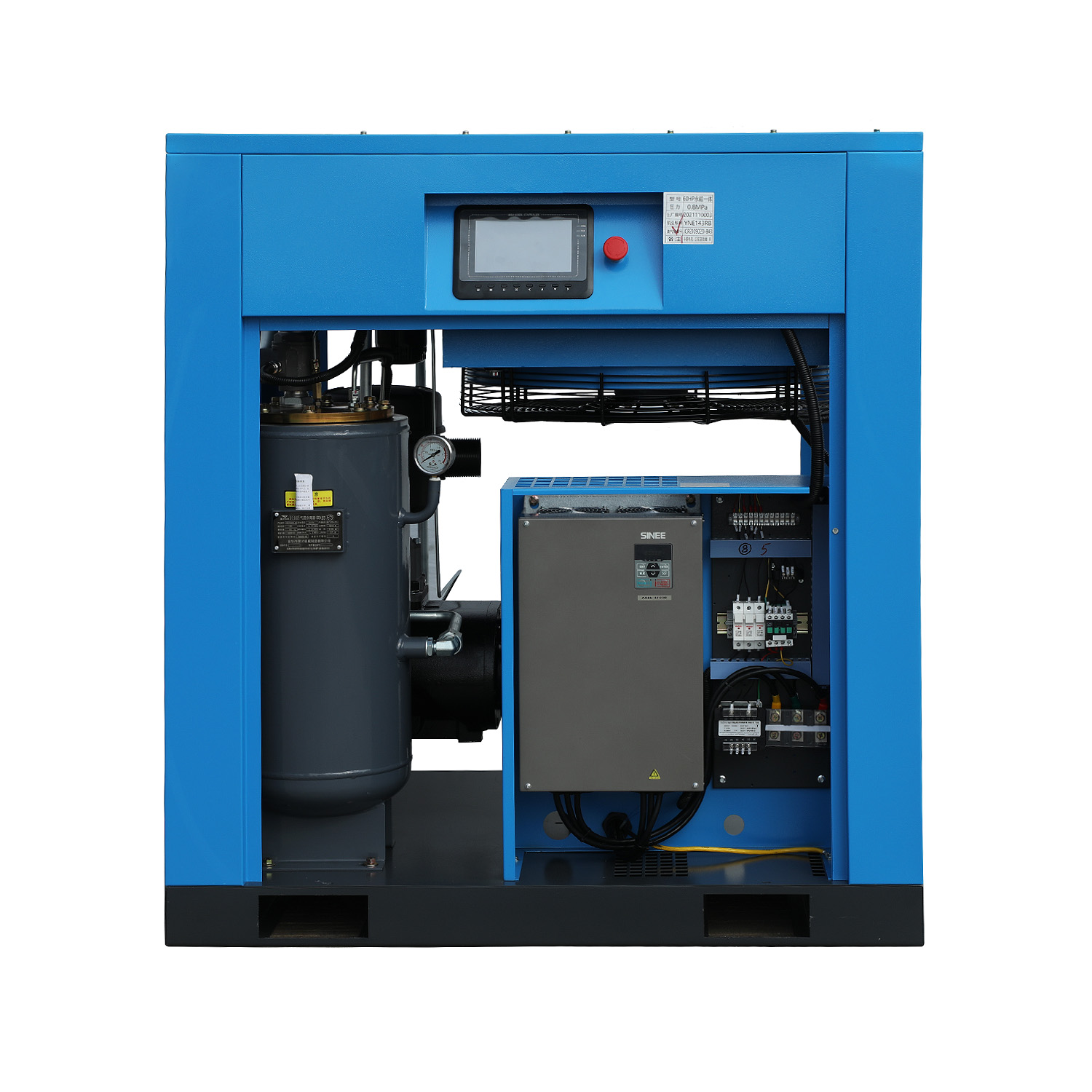

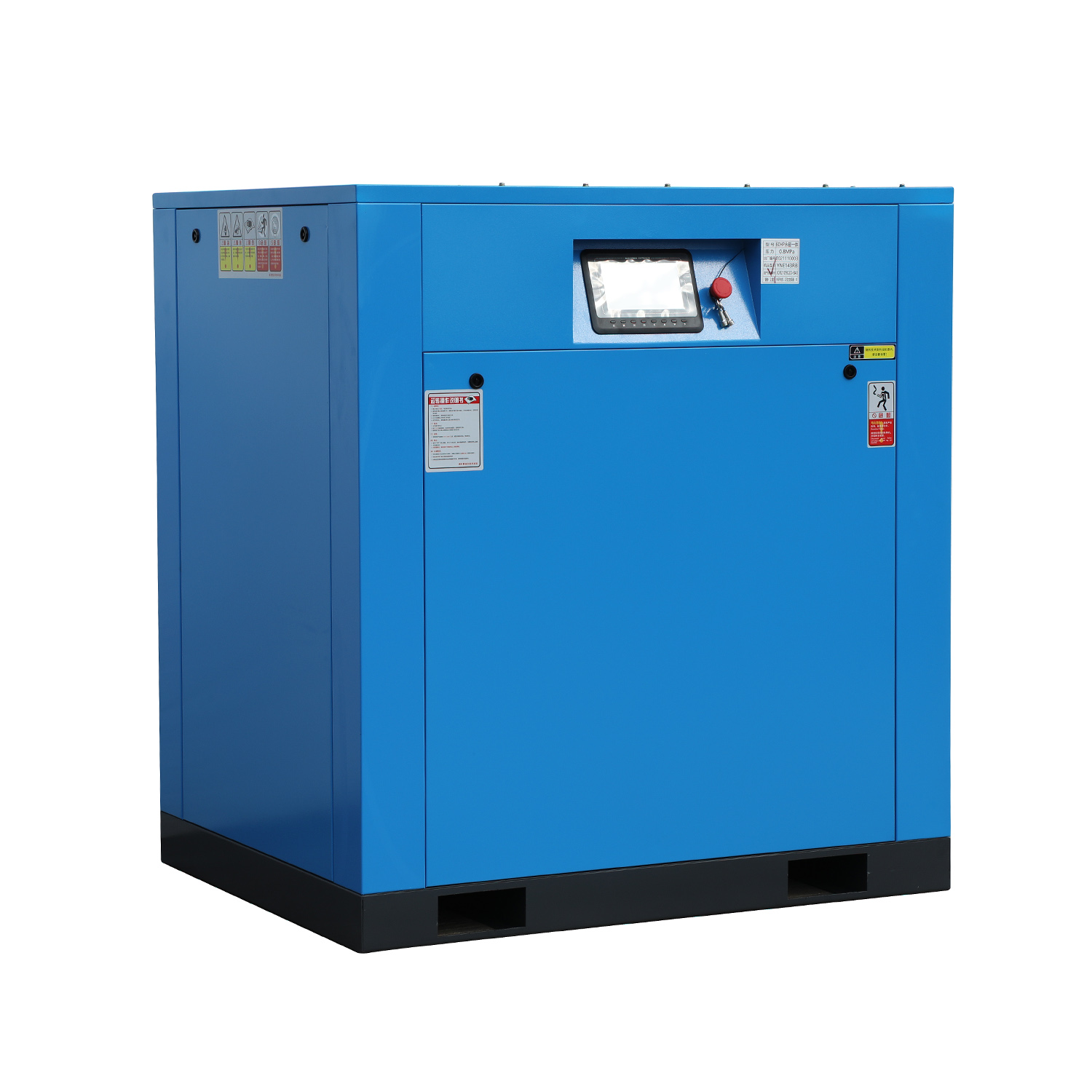

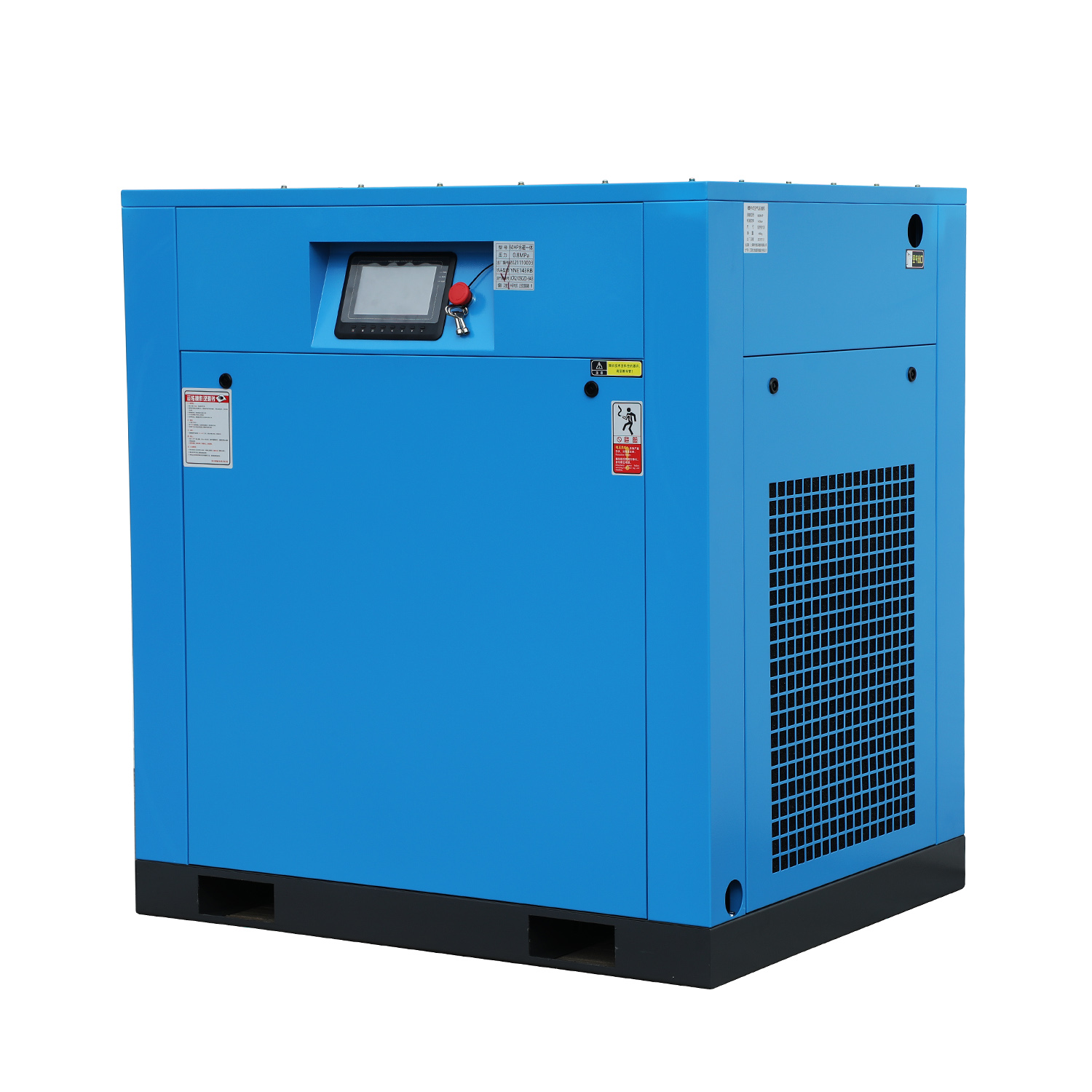

OEM VFD screw air compressor 0.7-1.25mpa Energy Saving up to 30% Manufacturers, Exporter
Product Description
Smart VFD compressor with load-matching algorithms saves 20–35% energy and maintains ±0.01 MPa pressure stability.
Oil-cooled double-shell motor resists dust—ideal for harsh environments like foundries and cement plants.
Wide range 7.5–250kW, up to 1.25 MPa, with customizable voltages for automotive, food, pharma, and textile industries.
21 years of experience, 81°C constant temp control, ≤3 PPM oil content, 12-month warranty, and full export support.
Technical Specifications (XZV- Series)
| XZV- Series (10A - 75A) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | 10A | 15A | 20A | 25A | 30A | 40A | X50A | 60A | 75A | |
| Free air delivery/Discharge air pressure (M3/min / Mpa) | 1.1 / 0.7 | 1.65 / 0.7 | 2.5 / 0.7 | 3.0 / 0.7 | 3.7 / 0.7 | 5.0 / 0.7 | 6.5 / 0.7 | 8.0 / 0.7 | 10.8 / 0.7 | |
| 1.0 / 0.8 | 1.5 / 0.8 | 2.3 / 0.8 | 2.9 / 0.8 | 3.5 / 0.8 | 4.8 / 0.8 | 6.2 / 0.8 | 7.5 / 0.8 | 10.2 / 0.8 | ||
| 0.9 / 1.0 | 1.53 / 1.0 | 2.1 / 1.0 | 2.7 / 1.0 | 3.1 / 1.0 | 4.3 / 1.0 | 5.6 / 1.0 | 6.8 / 1.0 | 9.0 / 1.0 | ||
| 0.8 / 1.25 | 1.1 / 1.25 | 1.7 / 1.25 | 2.4 / 1.25 | 2.7 / 1.25 | 4.0 / 1.25 | 5.0 / 1.25 | 5.6 / 1.25 | 7.6 / 1.25 | ||
| Air supply temperature | ≤ ambient temperature +8~15ºC | |||||||||
| Motor | Power (kw/hp) | 7.5 / 10 | 11 / 15 | 15 / 20 | 18.5 / 25 | 22 / 30 | 30 / 40 | 37 / 50 | 45 / 60 | 55 / 75 |
| Start method | Y-△Starter | |||||||||
| Voltage (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ / 460V-3PH-60HZ / 220V-3PH-60HZ / 400V-3PH-50HZ / 6000V-3PH-50HZ / other voltages customized) | |||||||||
| Drive method | Direct Drive | |||||||||
| Oil content (PPM) | ≤ 3 | |||||||||
| Connector inch | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | |
| Noise (Db) ±2 | 66 | 68 | 68 | 68 | 68 | 68 | 72 | 72 | 75 | |
| Dimension | length mm | 850 | 1100 | 1100 | 1250 | 1250 | 1250 | 1350 | 1350 | 1800 |
| width mm | 670 | 750 | 750 | 850 | 850 | 850 | 1000 | 1000 | 1230 | |
| height mm | 870 | 920 | 920 | 1160 | 1160 | 1160 | 1190 | 1190 | 1570 | |
| Weight (kg) | 178 | 260 | 267 | 310 | 396 | 450 | 586 | 593 | 1073 | |
| XZV- Series (100A - 350A) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | 100A | 120A | 150A | 175A | 200A | 250A | 300A | 350A | |
| Free air delivery/Discharge air pressure (M3/min / Mpa) | 13.4 / 0.7 | 16.2 / 0.7 | 21.0 / 0.7 | 24.5 / 0.7 | 28.7 / 0.7 | 32.0 / 0.7 | 36.0 / 0.7 | 42.0 / 0.7 | |
| 12.6 / 0.8 | 15.0 / 0.8 | 19.8 / 0.8 | 23.2 / 0.8 | 27.6 / 0.8 | 30.4 / 0.8 | 34.3 / 0.8 | 40.5 / 0.8 | ||
| 11.2 / 1.0 | 13.8 / 1.0 | 17.4 / 1.0 | 20.5 / 1.0 | 24.6 / 1.0 | 27.4 / 1.0 | 30.2 / 1.0 | 38.2 / 1.0 | ||
| 10 / 1.25 | 12.3 / 1.25 | 14.8 / 1.25 | 17.4 / 1.25 | 21.5 / 1.25 | 24.8 / 1.25 | 27.7 / 1.25 | 34.5 / 1.25 | ||
| Air supply temperature | ≤ ambient temperature +8~15ºC | ||||||||
| Motor | Power (kw/hp) | 75 / 100 | 90 / 120 | 110 / 150 | 132 / 175 | 160 / 200 | 185 / 250 | 220 / 300 | 250 / 350 |
| Start method | Y-△Starter | ||||||||
| Voltage (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ / 460V-3PH-60HZ / 220V-3PH-60HZ / 400V-3PH-50HZ / 6000V-3PH-50HZ / other voltages customized) | ||||||||
| Drive method | Direct Drive | ||||||||
| Oil content (PPM) | ≤ 3 | ||||||||
| Connector inch | 2" | 2" | 2 1/4" | 2 1/2" | 2 1/2" | 2 1/2" | DN100 | DN100 | |
| Noise (Db) ±2 | 78 | 85 | 85 | 85 | 88 | 88 | 90 | 90 | |
| Dimension | length mm | 1900 | 1900 | 2300 | 2300 | 2650 | 2650 | 3300 | 3300 |
| width mm | 1230 | 1230 | 1470 | 1470 | 1650 | 1650 | 2100 | 2100 | |
| height mm | 1570 | 1570 | 1840 | 1840 | 2045 | 2045 | 2045 | 2190 | |
| Weight (kg) | 1171 | 1327 | 1801 | 1848 | 2400 | 2600 | 3100 | 3300 | |

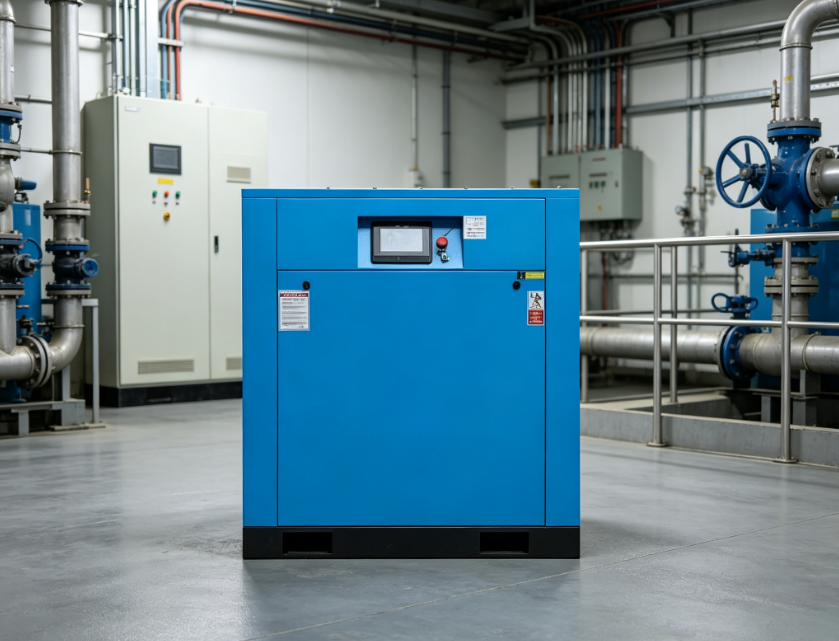

Applications
-
Automotive Manufacturing: Assembly lines, paint shops, robotic systems
-
Metal Processing: CNC machining, stamping, laser/plasma cutting
-
Food & Beverage: Packaging, bottling, conveying, pneumatic controls
-
Pharmaceutical: Clean room air, fermentation, tablet pressing
-
Electronics: PCB assembly, SMT lines, component testing
-
Plastic & Rubber: Injection molding, blow molding, extrusion
-
Textile Industry: Air jet looms, spinning, dyeing finishing
-
Mining & Construction: Heavy-duty pneumatic equipment
-
Woodworking: Sanding, clamping, pneumatic nail guns
-
Dusty Environments: Foundries, cement plants, mineral processing (ideal for double-shell oil-cooled motor design)
Frequently Asked Questions
A: Our proprietary load-matching algorithms deliver significant energy savings compared to fixed-speed compressors. Actual savings depend on your load profile, but typical results range from 20–35% in fluctuating demand applications.
A: The double-shell design circulates cooling oil through a passageway between inner and outer shells, using the compressor's own lubrication system. This eliminates contact with external cooling air, making the motor exceptionally resistant to dust, dirt, and contaminants—perfect for harsh industrial environments.
A: Constant pressure control keeps air pressure fluctuation within ±0.01 MPa, ensuring stable output for sensitive processes. Constant temperature control maintains the compressor at 81°C, optimizing oil viscosity for superior lubrication while preventing sudden high-temperature shutdowns.
A: VFD compressors adjust motor speed based on actual air demand, consuming only the energy needed at any given moment. Fixed-speed compressors run at full speed regardless of demand, wasting energy during off-peak periods.
A: Yes. We offer standard 380V/3PH/50Hz, with optional 380V-3PH-60Hz, 460V-3PH-60Hz, 220V-3PH-60Hz, 400V-3PH-50Hz, 6000V-3PH-50Hz, and other voltages upon request.
A: The XZV series delivers air with oil content ≤3 PPM, meeting the requirements of most industrial applications.
