Executive Summary: Technical Precision in Scroll & Rotary Air Engineering
Shanghai Honest Compressor Co., Ltd. (OSG Compressor) represents two decades of high-precision displacement compression manufacturing, operating from our state-of-the-art 50,000 m² production facility in Malu Town, Jiading District, Shanghai.
Founded in early 2004 under British manufacturing heritage standards, Shanghai Honest Compressor Co., Ltd. has evolved into an engineering power center for high-efficiency compressed air systems. In modern industrial operations, compressed air is often referred to as the "fourth utility." However, electricity consumption accounts for approximately 75% to 80% of a compressor's total lifecycle cost (TCO) over a ten-year operational span.
Engineering Comparison: Scroll vs. Rotary Screw Compression Dynamics
Understanding the physics of volumetric displacement to select the optimal ODM technology stack for your enterprise application.
Orbital Scroll Architecture
Scroll compressors utilize two interleaving spiral-shaped scroll wraps: one stationary scroll and one orbiting scroll driven by a eccentric shaft. As the orbiting scroll moves, crescent-shaped pockets are formed between the spirals. These pockets continuously decrease in volume as they move toward the center, compressing air smoothly without inlet or discharge valves.
- Vibration-Free: Continuous orbital movement results in exceptionally low noise (52–62 dB(A)).
- 100% Oil-Free by Design: Zero oil lubrication inside the compression chamber eliminates risk of contamination.
- Ideal Capacity Range: Optimal efficiency for low-to-medium flow (0.2 to 3.5 m³/min) continuous applications.
Twin Asymmetric Rotor Mechanics
Rotary screw compressors rely on helical male and female rotors intermeshing within a precise housing. As the rotors rotate, the inter-lobe volume decreases progressively from the suction port to the discharge port. Honest Compressor's proprietary 5:6 tooth profile reduces internal blow-by leakage and optimizes volumetric efficiency.
- High Continuous Flow: Engineered for continuous 24/7 duty cycles demanding 1.5 to over 55.0 m³/min.
- Two-Stage Inter-Stage Cooling: Splits compression ratio across two rotor sets, approaching isothermal efficiency.
- Heavy Industrial Resilience: Designed for harsh environmental conditions, dust, and continuous full load.
| Performance Metric | ODM Orbital Scroll Unit | Single-Stage PM VFD Screw | Two-Stage PM VFD Screw |
|---|---|---|---|
| Target Flow Range (m³/min) | 0.2 – 3.2 m³/min | 1.2 – 35.0 m³/min | 6.0 – 55.0+ m³/min |
| Operating Pressure (Bar) | 7.0 – 10.0 Bar | 7.0 – 13.0 Bar | 7.0 – 16.0 Bar |
| Noise Level dB(A) | 52 – 62 dB(A) | 65 – 72 dB(A) | 68 – 75 dB(A) |
| Air Quality Standard | ISO 8573-1 Class 0 (Oil-Free) | ISO Class 2 (Micro-Oil / Water-Lub) | ISO Class 0 or Class 1 Options |
| Specific Power (kW/m³/min) | 6.8 – 7.4 kW | 5.8 – 6.4 kW | 5.1 – 5.6 kW (Ultra Energy Saver) |
China Factory Supply Chain Advantages & Manufacturing Scale
Why sourcing directly from Shanghai's premier industrial manufacturing cluster delivers unmatched cost-performance, quality control, and custom engineering agility.
Jiading Precision Ecosystem
Located in Malu Town, Jiading District, Shanghai, our factory operates within China's most advanced high-tech automotive and heavy industrial manufacturing hub. This grants us immediate access to world-class foundry casting, ultra-precision CNC grinding machinery (German KAPP/HÖFLER), and automated heat-treatment plants.
Vertical Production Control
Unlike pure assembly plants, Shanghai Honest Compressor controls rotor casting, surface coating, dynamic rotor balancing, electrical cabinet assembly, and full-load pressure testing under a unified ISO 9001 quality framework. This vertical integration reduces production lead times and ensures batch-to-batch consistency.
Bespoke Engineering (ODM)
We specialize in tailored OEM/ODM solutions: modifying scroll wrap profiles, custom-building 4-in-1 skid-mounted explosion-proof configurations, adjusting electrical panel voltages (380V/400V/415V/480V at 50/60Hz), and embedding client-branded IoT multi-language PLC microcontrollers.
Global Enterprise Procurement Needs & Life Cycle TCO Optimization
Decoupling total cost of ownership (TCO) for enterprise buyers, plant engineers, and EPC contractors.
The 10-Year Compressed Air Lifecycle Cost Breakdown
Procurement executives often focus solely on initial capital expenditure (CAPEX). However, a rigorous financial evaluation reveals that over 10 years of continuous operational duty (6,000+ hours/year), initial purchase cost accounts for only ~12% of total expenses.

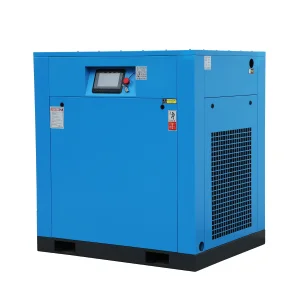

PM VFD Energy Return on Investment (ROI)
Fixed-speed compressors waste massive energy during "unload" periods, idling at 30–40% full power while producing zero compressed air. Honest Compressor's Permanent Magnet Variable Frequency Drive (PM VFD) automatically throttles motor RPM down to 15% capacity, matching air output precisely to plant air demand in real time.
Localized Application Scenarios & Engineering Adaptations
Domain-specific air purity and pressure solutions engineered for stringent industrial environments.
ISO 8573-1 Class 0 Air
For drug synthesis, blister packaging, and hospital pneumatic systems, oil contamination is catastrophic. Our dry oil-free scroll and water-lubricated screw series deliver certified zero-oil air, eliminating downstream product contamination risks.
Electronics & Cleanrooms
Micro-chip manufacturing requires pulse-free pressure stability and ultra-low vibration. Scroll compressor modules operating at low RPMs prevent harmonic resonance, safeguarding sensitive optical and photolithography tooling.
Hazardous Zone Explosive Protection
Chemical processing facilities demand Ex d IIB T4 / Ex d IIC T4 explosion-proof ratings. Our 4-in-1 integrated explosion-proof units enclose compressor, air receiver, refrigerant dryer, and heavy-duty filtration in a flameproof IP55 cabinet.
Clean Bottling & Conveying
Direct contact air for PET bottle blowing, pneumatic filling, and food sparging requires dry, sterile air. Water-lubricated screw compressors utilize purified water as the cooling medium, eliminating hydrocarbon vapor completely.
Automotive Stamping & Robotics
Continuous multi-shift robotic welding and press lines demand heavy-duty two-stage screw compressors that maintain 0.7–1.3 MPa under peak plant loading with zero thermal shutdown risk.
Industrial Clean Vacuum Lines
Our dry oil-free screw vacuum pumps provide ultimate suction pressure down to 0.35 mbar for vacuum degassing, thermoforming, and chemical distillation without oil sludge creation.
Local Support, Compliance Safeguards & International Certification
Ensuring seamless import clearance, regulatory compliance, and post-installation service coverage across global jurisdictions.
Global Regulatory Compliance
Navigating international customs and local electrical grid standards can delay capital projects. Shanghai Honest Compressor guarantees full factory compliance with key global certification frameworks:
- European Union: CE Conformity (Machinery Directive 2006/42/EC & Pressure Equipment Directive PED 2014/68/EU).
- North America: UL / CSA electrical cabinet configuration & ASME pressure vessel certification options.
- Quality & Environment: ISO 9001:2015 Quality Systems and ISO 14001 Environmental Management certification.
- Electrical Adaptability: Custom winding for 200V, 220V, 380V, 400V, 415V, 440V, 460V, and 480V at 50Hz or 60Hz grids.
Global SLA & Technical Service Support
Unplanned downtime in compressed air systems directly halts plant production lines. Honest Compressor supports worldwide distributors and end-users through a robust technical backup network:
- 1,000+ Global Service Touchpoints: Partnered local service centers for rapid spare part dispatch.
- Remote Telemetry & IoT Monitoring: Cloud-connected PLC controllers broadcast pressure, oil temp, and vibration alerts in real-time.
- Guaranteed Parts Interchangeability: Standardized consumables (air filters, oil separators, lubricants) stocked worldwide.
- Engineering Commissioning: On-site or video-guided installation, pipe network sizing, and audit support.
Industry Trends: The Future of Industrial Air Compression
Key technology shifts reshaping the industrial compressed air landscape over the next decade.
IE5 Ultra-Premium Efficiency
The industry is rapidly phasing out legacy IE2/IE3 induction motors. Permanent Magnet Synchronous Motors (PMSM) with IE5 rating maintain near 97% efficiency even at partial loads, significantly flattening the specific energy curve.
Zero-Carbon Water Lubrication
As environmental ESG regulations tighten globally, oil-injected compressors are being replaced by water-lubricated screw technology in sensitive food, medical, and textile applications to eliminate hazardous oil waste disposal.
Industry 4.0 Smart Diagnostics
Modern air stations are transforming into smart cyber-physical systems. Embedded sensors analyze rotor vibration spectrums, dewpoint levels, and filter differential pressures to predict bearing wear prior to catastrophic failure.
