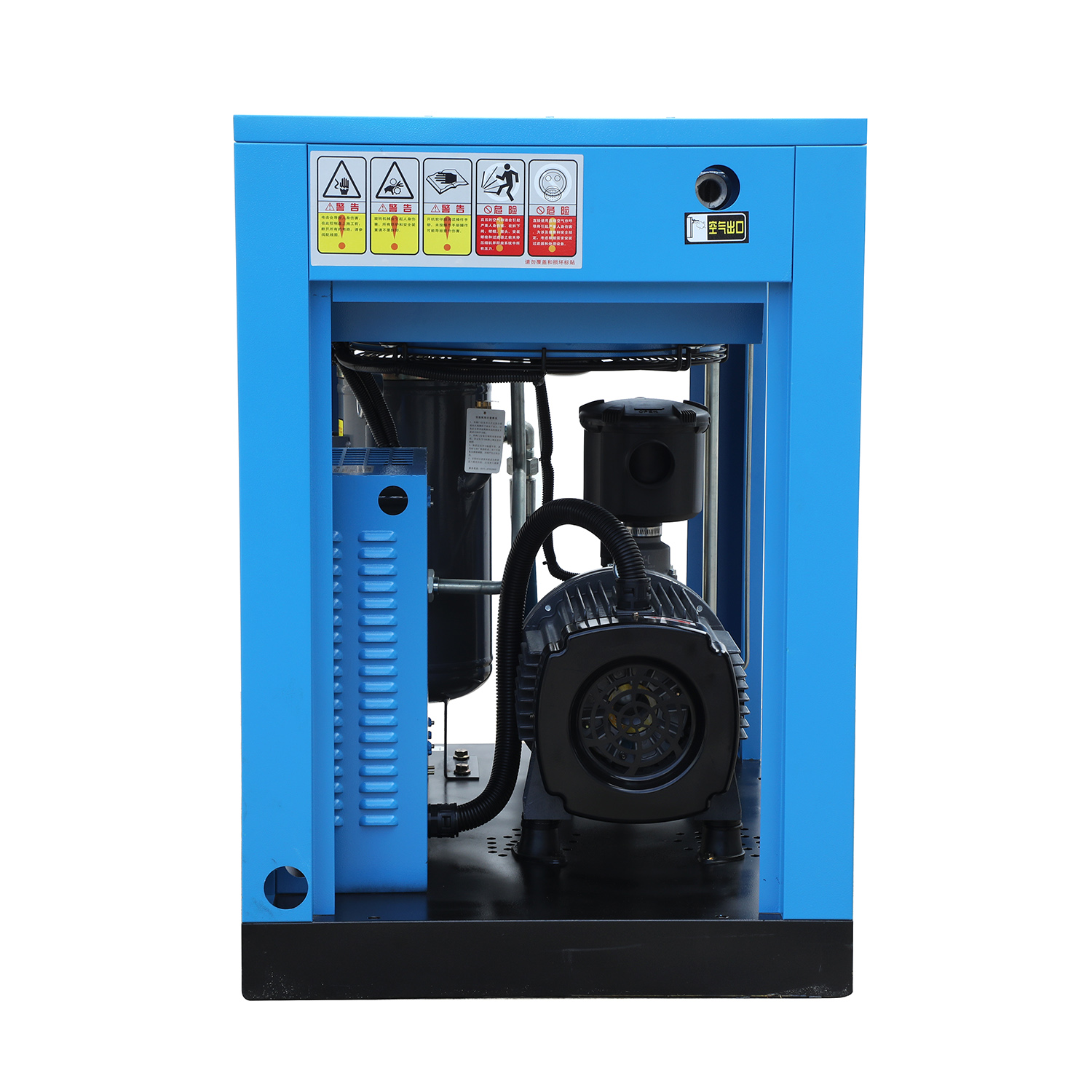

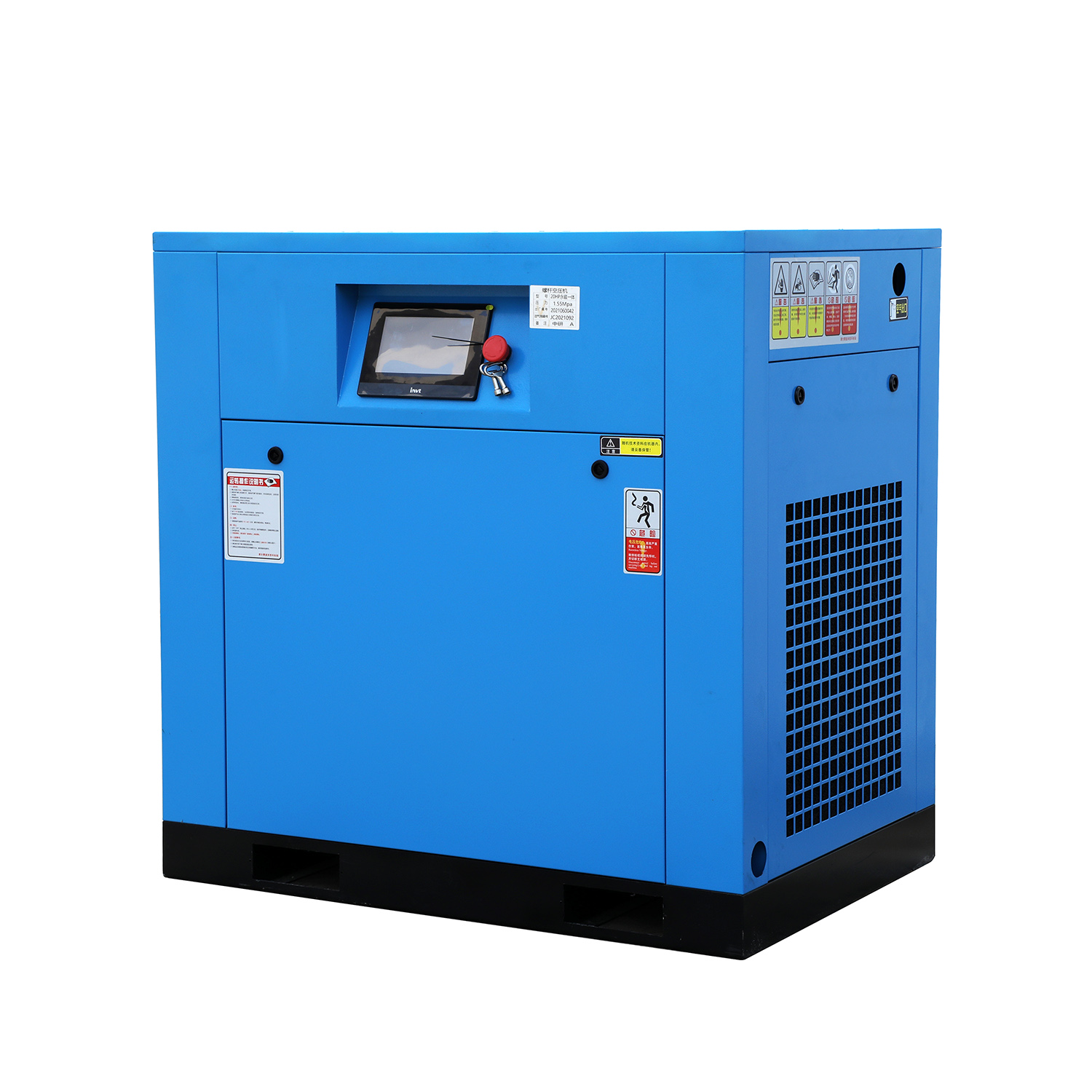

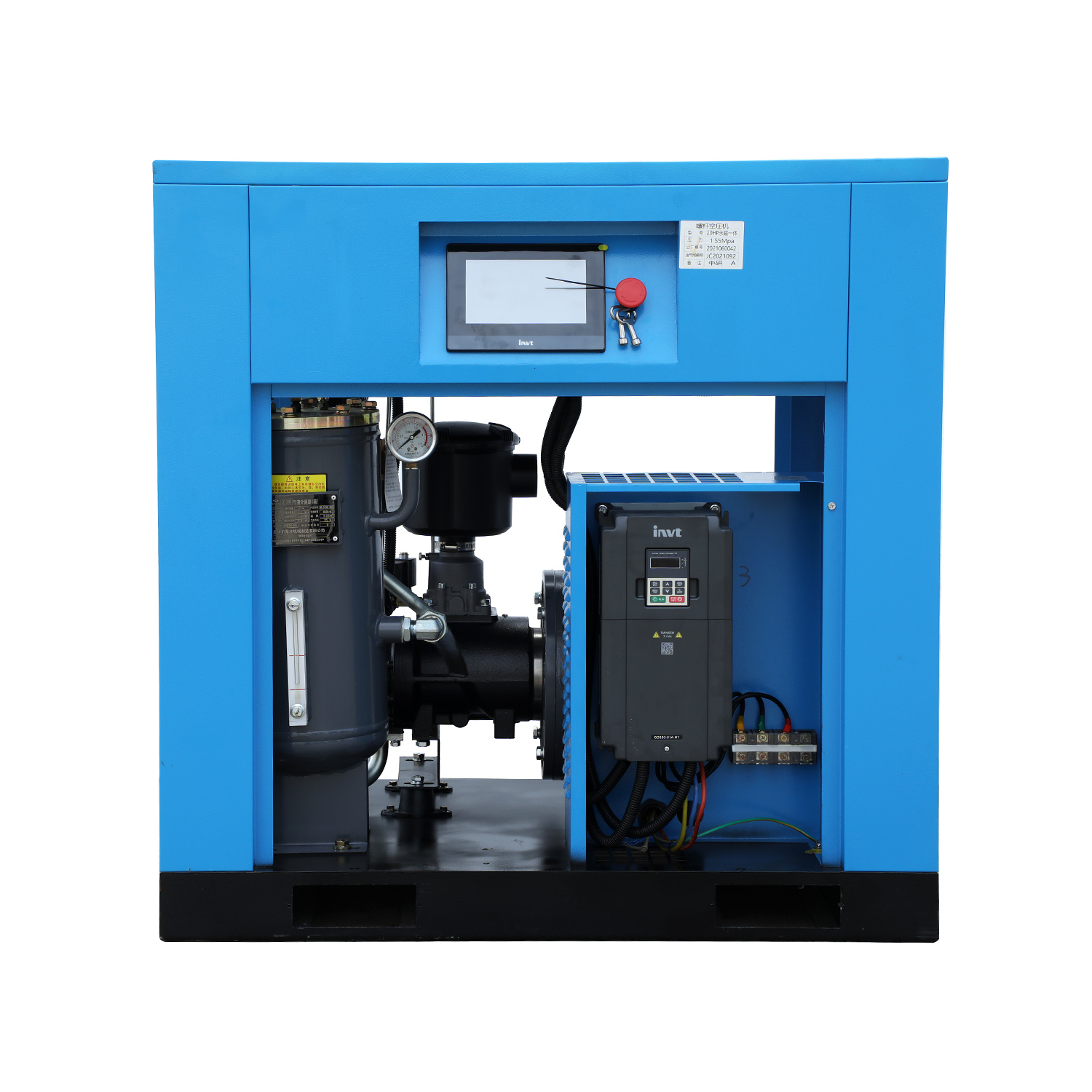

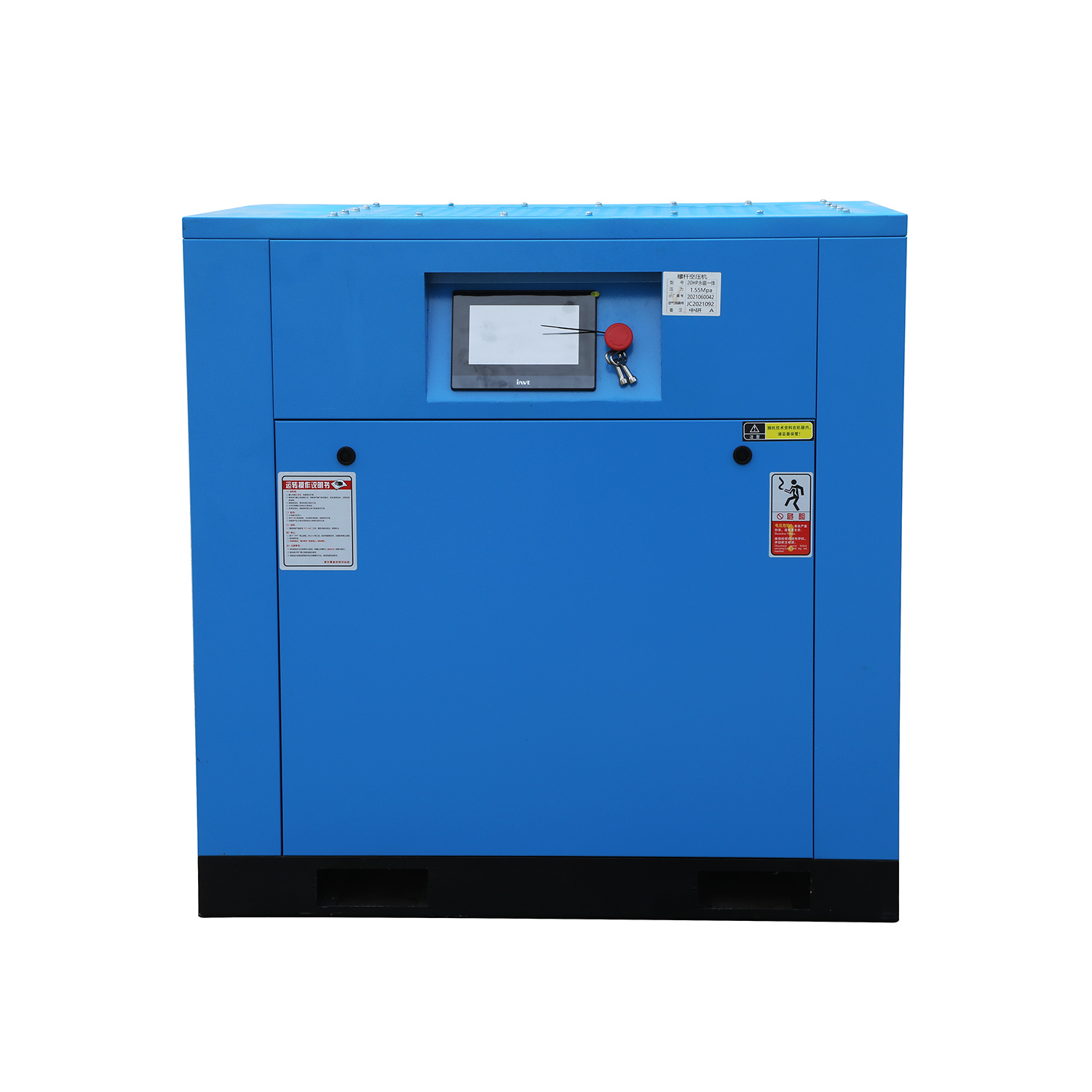

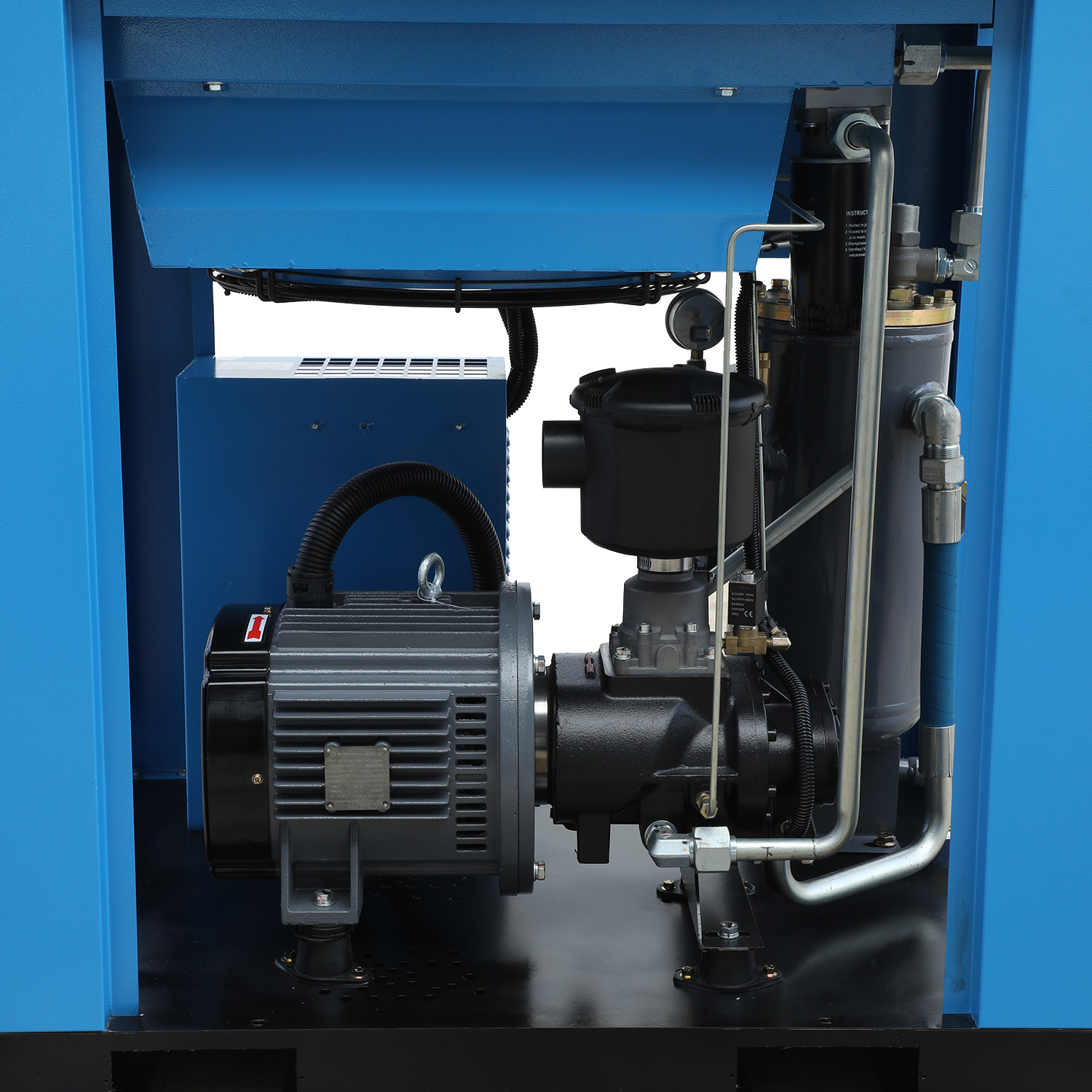

OEM Industrial 15kw/22kw/37kw/55kw/75kw Energy Saving Pm Motor VSD/VFD Rotary Screw Air Compressor Manufacturer, Exporters
Product Description
FEATURES
High reliability
High reliability, few parts and no wearing parts, so it runs reliably and has a long service life. Generally, the design life of the main screw is 15-20 years.
No base operation
The power balance is good, there is no unbalanced inertial force the machine can work smoothly at high speed,and realize the operation without foundation.
Easy to operate
It is easy to operate and maintain,with a high degree of automation, andoperators do not need to undergolong-term professional training toachieve unattended operation.
Product Specification
| XZV- series technical parameters: | |||||||||||||||
| Model | XZV-8A | XZV-11A | XZV-15A | XZV-18A | XZV-22A | XZV-30A | XZV-37A | XZV-45A/ | XZV-55A | XZV-75A | XZV-90A | XZV-110A | XZV-132A | XZV-160A | |
| Free air delivery/Discharge air pressure (M3/min/ Mpa) | 1.1/0.7 | 1.8/0.7 | 2.5/0.7 | 3.0/0.7 | 3.7/0.7 | 5.0/0.7 | 6.5/0.7 | 7.4/0.7 | 10.0/0.7 | 13.4/0.7 | 16.2/0.7 | 21.0/0.7 | 24.5/0.7 | 28.7/0.7 | |
| 1.0/0.8 | 1.7/0.8 | 2.3/0.8 | 2.9/0.8 | 3.5/0.8 | 4.8/0.8 | 6.2/0.8 | 7.0/0.8 | 9.6/0.8 | 12.6/0.8 | 15.0/0.8 | 19.8.0/0.8 | 23.2/0.8 | 27.6/0.8 | ||
| 0.9/1.0 | 1.5/1.0 | 2.0/1.0 | 2.7/1.0 | 3.1/1.0 | 4.3/1.0 | 5.6/1.0 | 6.2/1.0 | 8.5/1.0 | 11.2/1.0 | 13.8/1.0 | 17.4/1.0 | 20.5/1.0 | 24.6/1.0 | ||
| 0.7/1.3 | 1.2/1.3 | 1.7/1.3 | 2.2/1.3 | 2.6/1.3 | 3.6/1.3 | 4.5/1.3 | 5.5/1.3 | 7.2/1.3 | 9.8/1.3 | 11.6/1.3 | 14.3/1.3 | 17.4/1.3 | 21.5/1.3 | ||
| Air supply temperature | ≤ambient temperature +8~`15ºC | ||||||||||||||
| Motor | Power (kw/hp) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 | 160/215 |
| Start method | VSD Starter | ||||||||||||||
| Voltage (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ/ 460V- 3PH- 60HZ/ 220V- 3PH-60HZ/ 400V-3PH-50HZ/6000V-3PH-50HZ/other voltagesd customized ) | ||||||||||||||
| Drive method | Coupling transmission | ||||||||||||||
| Oil content (PPM) | ≤3 | ||||||||||||||
| Connector inch | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | 2" | 2" | 2 1/4" | 2 1/2" | 2" | |
| Noise(Db)±2 | 66 | 68 | 68 | 68 | 68 | 68 | 72 | 72 | 75 | 78 | 85 | 85 | 85 | 88 | |
| Dimension | length mm | 900 | 1100 | 1100 | 1060 | 1060 | 1060 | 1500 | 1500 | 1800 | 1900 | 1900 | 2500 | 2500 | 2500 |
| width mm | 700 | 750 | 750 | 820 | 820 | 820 | 1000 | 1000 | 1230 | 1230 | 1230 | 1470 | 1470 | 1470 | |
| height mm | 930 | 1000 | 1000 | 1220 | 1220 | 1220 | 1290 | 1290 | 1570 | 1570 | 1570 | 1840 | 1840 | 1840 | |
| Weight (kg) | 140 | 200 | 210 | 235 | 296 | 336 | 443 | 466 | 834 | 917 | 1000 | 1200 | 1350 | 1400 | |
Certifications

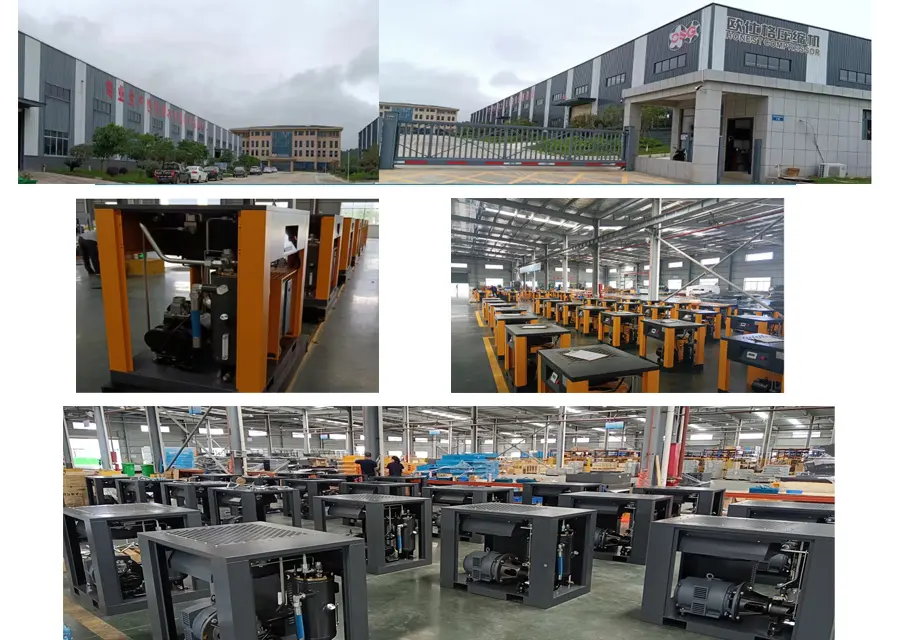

Our factory / Product Pictures
Application

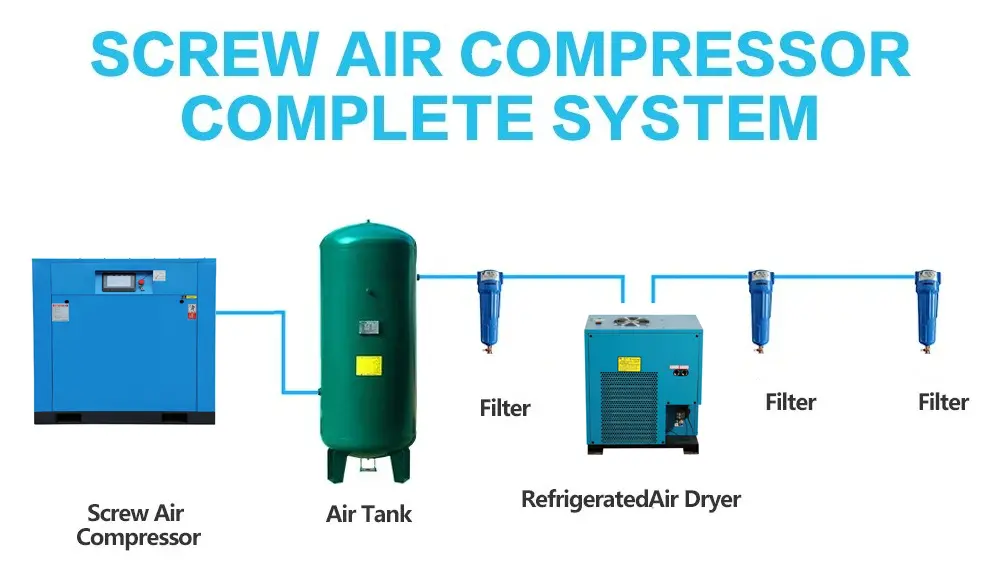

Air compressor installation processing
FAQ
Q1
Are you factory or trade company?
A1
We are factory and now we have 2 factories .
Q2
What the exactly address of your factory?
A2
No. 1071, Yongxin road, Xuhang Town, Jiading district ,Shanghai , China
Q3
Warranty terms of your machine?
A3
13 months warranty for the delivery date.
Q4
Will you provide some spare parts of the Air Compressors?
A4
Yes, of course.
Q5
How long will you take to arrange production?
A5
380V 50HZ we can delivery the goods within 10 days. Other voltages or other color we will delivery within 30 days
Q6
Can you accept OEM orders?
A6
Yes, with professional design team, OEM orders are highly welcome.
