Direct-Driven Engineering Excellence
Explore our flagship direct-drive 1:1 coupled rotary screw air compressors, PM VFD vacuum pumps, and oil-free dry blowers engineered for minimum power consumption and maximum uptime.
1. Technical Architecture of Direct-Driven Screw Air Compressors
In modern industrial compressed air engineering, transmission efficiency dictates overall lifecycle costs. Traditional belt-driven air compressors suffer from inherent mechanical losses caused by belt slippage, lateral side-load stresses on bearings, and progressive tension decay—resulting in a 3% to 5% loss of energy transfer efficiency over operating cycles. Gear-driven designs introduce thermal friction and mechanical backlash, requiring continuous oil lubrication for gearboxes.
As an established ODM Compressor Direct Driven Manufacturer & Exporter based in Shanghai, China, Shanghai Honest Compressor Co., Ltd. (OSG Compressor) utilizes a direct-drive 1:1 direct coupling design. By uniting the motor shaft directly to the male rotor of the screw airend without intermediate gears or belts, transmission loss is reduced to virtually zero (mechanical efficiency > 99.8%).
Permanent Magnet Synchronous Motor (PMSM)
Equipped with high-coercivity NdFeB (Neodymium Iron Boron) permanent magnets, maintaining magnetic field density without electrical excitation loss even under high temperatures up to 180°C.
Asymmetric 5:6 Lobe Rotor Profile
Precision-machined SAP tooth profile reduces internal blow-by leakage across radial lines, maximizing Specific Power Delivery ($kW / (m^3/min)$) and extending bearing longevity.
1:1 Shaft Direct Alignment
Eliminates radial bearing loads induced by belt tension. Ensures zero axial deviation, zero vibration resonance, and lower decibel emissions (< 65 dB(A)).
Information Gain: Energy Efficiency Breakdown
Over a 10-year operational lifecycle of an industrial compressor running 6,000 hours per year, electricity consumption accounts for approximately 75% to 80% of total lifecycle cost (TCO), while capital expenditure represents only 10-15%. By deploying an Honest Compressor direct-driven unit paired with vector VSD (Variable Speed Drive), plant operations eliminate unload idling losses, dynamically adjusting shaft RPM to precise air demand fluctuations.
2. Technology Roadmap & Future Outlook (2025–2035)
The compressed air equipment landscape is undergoing a structural paradigm shift driven by stringent carbon-neutral mandates (ISO 50001 Energy Management Standards) and digitalized plant architectures. Our engineering R&D team in Shanghai focuses on three critical technology vectors:
| Technology Vector | Legacy Technology Baseline | Honest Compressor Direct-Drive Next-Gen Solution | Operational Impact & Benefit |
|---|---|---|---|
| Motor Architecture | Asynchronous Induction Motors (IE2 / IE3) | Liquid-Cooled Permanent Magnet Motors (IE5 Ultra-Premium) | Eliminates rotor electrical losses; operates cooler by 25°C. |
| Oil-Free Pure Air Generation | Oil-injected screw with multi-stage filtration | Class 0 Dry Screw & Water-Lubricated Single Screw (EOWV Series) | Zero risk of silicone or hydrocarbons in air lines. Meets ISO 8573-1. |
| Thermal Energy Recovery | 100% heat dissipation via radiator fans to atmosphere | Integrated Liquid-to-Liquid Heat Exchangers | Recovers up to 85% of electrical energy input into usable hot water (70-80°C). |
| Control Systems | Standard relay logic or basic digital PLC | AI-driven Predictive Maintenance Controller with Modbus/IoT | Real-time vibration analysis, bearing temperature tracking, cloud telemetry. |
3. Macro-Industry Turnkey Solutions
Different industrial manufacturing processes demand tailored pressure profiles, flow rates (FAD), and air quality classifications. As a global OEM/ODM manufacturer, our direct-driven screw compressor models integrate smoothly into heavy enterprise infrastructures:

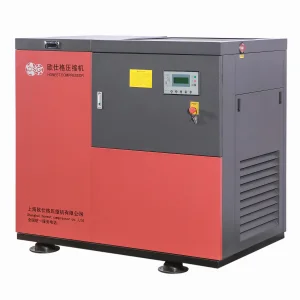

High-Precision Fiber Laser Cutting (16-25 Bar)
Fiber laser cutting machines require ultra-dry, oil-free compressed air at high pressures (16–25 bar) as an auxiliary gas to blow away molten metal cleanly. Our specialized 20-bar dedicated direct-driven screw compressors replace expensive liquid nitrogen, cutting operational gas costs by up to 70%.
Pharmaceutical & Food Processing (Class 0)
For pill pneumatic conveying, sterile packaging, and beverage aeration, zero oil contamination is mandatory. Our EOF dry oil-free and EOWV water-lubricated screw units guarantee 100% oil-free air (ISO 8573-1 Class 0 certified), eliminating batch dump risks.
Hazardous & Chemical Plants (Ex-Proof 4-in-1)
Offshore platforms and chemical processing zones require explosion-proof compliance. We manufacture flameproof Ex d IIB / IIC T4 certified integrated direct-drive air units combining compressor, stainless steel receiver tank, cold dryer, and high-efficiency filtration.
4. China Factory 4.0: Supply Chain Resilience & Manufacturing Advantage
Situated in the heart of East China's industrial hub—Malu Town, Jiading District, Shanghai—Shanghai Honest Compressor Co., Ltd. spans a 50,000 square meter modernized factory campus. Founded in early 2004 with British engineering heritage, our facility integrates vertical supply chain manufacturing:
Ultra-Precision Rotor Machining
Equipped with German Klingelnberg and Holroyd CNC rotor grinding machines, holding machining tolerances within micrometer limits (≤ 3 microns) for absolute rotor symmetry.
In-House Assembly & Dynamic Balancing
Every direct-driven motor rotor undergoes dynamic balancing tests to ISO 1940 Grade G2.5 standard, preventing micro-vibration bearing fatigue.
ISO 1217 Annex C Full-Load Testing
100% of finished compressors undergo rigorous factory acceptance testing (FAT) on computer-controlled test beds, verifying exact Free Air Delivery (FAD) and power consumption prior to export.
5. Global Enterprise Procurement & Customization (ODM / OEM)
Procurement teams and international OEM brand owners require more than off-the-shelf equipment; they demand custom localized configurations. We provide comprehensive OEM/ODM engineering services to over 50 export markets across Europe, the Americas, the Middle East, and Southeast Asia:
- Electrical Grid Adaptability: Customized motor windings for 220V, 380V, 400V, 415V, 440V, and 460V at 50Hz or 60Hz 3-phase power configurations.
- Smart Touch HMI Controllers: Multi-lingual user interface support (English, Spanish, Russian, Arabic, French, Chinese) with Modbus RTU / RS485 integration.
- Enclosure & Branding Customization: Custom sheet metal fabrication, RAL color powder coating, private label branding, and custom packaging.
- Ambient Adaptability: Tropicalized heavy-duty cooling radiators for ambient operation up to +50°C, and cold-start heating kits for low temperatures (-20°C).
6. Localization Support, Quality Standards & Global Compliance
Importing heavy industrial machinery demands complete regulatory compliance. All Honest Compressor direct-drive systems are backed by recognized international certifications:
European Union CE Certification
Complies with Machinery Directive 2006/42/EC and Pressure Equipment Directive (PED 2014/68/EU), allowing seamless entry into EU member states.
ISO 9001 & ISO 14001 Standards
Manufactured under audited Quality Management and Environmental Management Systems, ensuring consistent batch quality and material traceability.
Global Spare Parts & Service Logistics
Over 1,000 service partners worldwide stocked with genuine consumable kits (air filters, oil separators, synthetic lubricants, shaft seals) for fast delivery.
Specialized Screw Compressors & Vacuum Solutions
Review our specialized series including 20bar laser-cutting air units, oil-free water-lubricated compressors, dry screw blowers, and permanent magnet vacuum pumps.
Frequently Asked Technical Questions (FAQ)
Expert answers from our Shanghai engineering team regarding sizing, efficiency, direct-drive maintenance, and customization.
Q1: What is the main operational advantage of a 1:1 Direct-Driven screw compressor over a belt-driven compressor?
A 1:1 direct-driven screw compressor connects the motor shaft directly to the airend rotor shaft via a flexible elastomeric coupling. This eliminates transmission power loss (saving 3% to 5% electricity compared to belt systems), eliminates side loads on motor and rotor bearings, reduces operating vibration, and removes the need for routine belt replacement or tension adjustments.
Q2: How much financial savings can a Permanent Magnet Variable Frequency (PM VFD) compressor achieve?
On facilities with fluctuating air consumption, PM VFD compressors save 20% to 40% in electrical costs compared to fixed-speed load/unload compressors. By continuously adjusting motor speed to match actual system demand, the compressor maintains a stable line pressure (±0.1 bar) and prevents energy waste during un-loaded idling cycles.

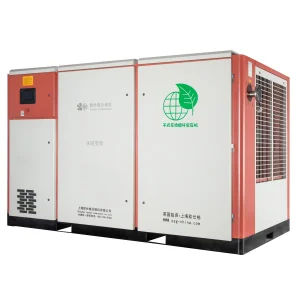

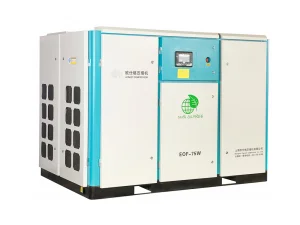

Q3: What is the difference between Dry Type Oil-Free and Water-Lubricated Oil-Free screw compressors?
Dry Type oil-free screw compressors utilize specially coated (Teflon/Ultra-Coat) male/female rotors running in a dry compression chamber without liquid inside the rotors, backed by timing gears. Water-lubricated screw compressors inject purified water directly into the compression chamber for cooling, sealing, and lubrication. Both technologies deliver ISO 8573-1 Class 0 pure air, but water-lubricated units operate at lower internal temperatures (<50°C) and achieve near-isothermal compression efficiency.
Q4: What technical details are needed to request a custom ODM compressor engineering quotation?
To provide an accurate ODM technical proposal and pricing, our engineering team requires: (1) Free Air Delivery (FAD) volume in $m^3/min$ or CFM, (2) Target discharge pressure in Bar or PSI, (3) Site electrical supply (Voltage, Frequency, Phase), (4) Required air purity class (Industrial Oil-Injected vs. ISO Class 0 Oil-Free), (5) Cooling preference (Air-cooled or Water-cooled), and (6) Any specific ambient constraints or certifications (CE, ASME, Explosion-Proof).
