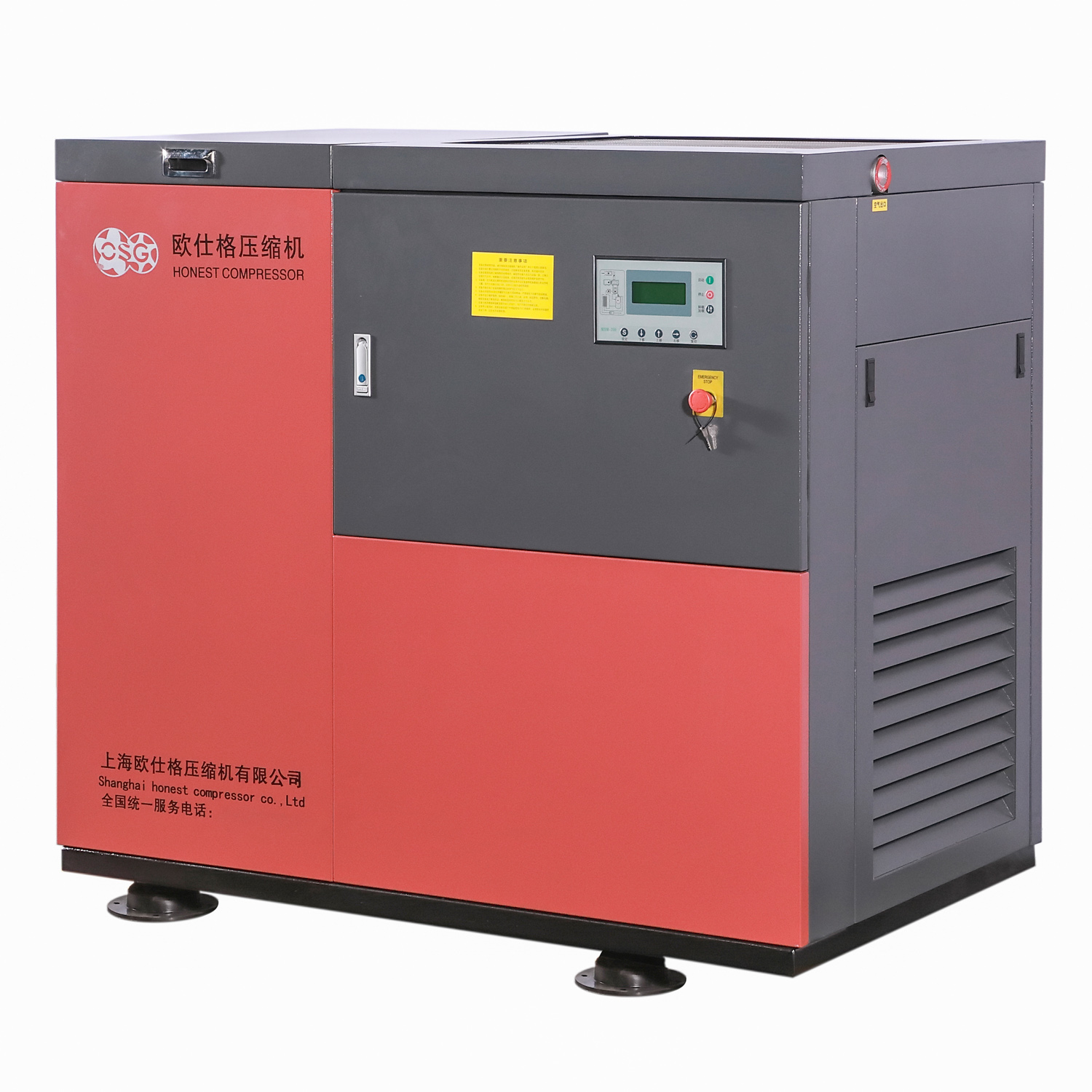

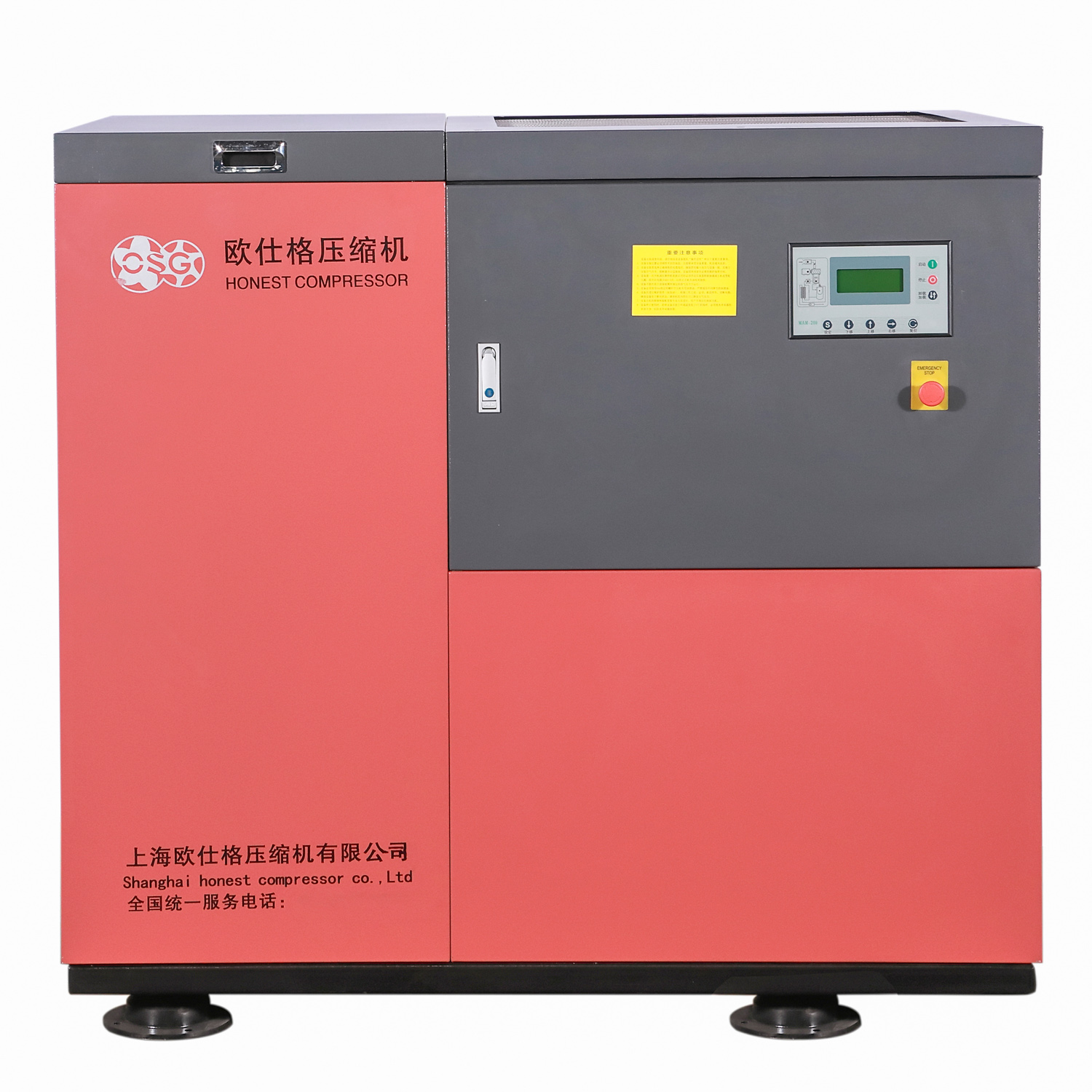

China 20bar pressure Screw Air Compressor for laser cutting machine Supplier, Suppliers
Product Description
1. Product Overview
Our EU & E series screw air compressors are high-efficiency, stable industrial air supply equipment, covering power range from 7.5kW to 37kW. With mature screw compression technology, they stably provide compressed air under 1.3MPa and 1.6MPa working pressure; the E-37GA model supports extra high pressure options (1.6MPa/2.0MPa). Widely applied in machinery manufacturing, packaging, plastic, food, textile, construction and other industries as core air source equipment.
2. Core Performance Advantages
(1) Stable & High Air Output
Two sets of standard working pressure configurations for flexible matching:
- 1.3MPa standard pressure: Stable large displacement, meets daily general factory air consumption.
- 1.6MPa high pressure: Higher compression ratio, suitable for high-pressure pneumatic tools, precision processing.
- E-37GA special version reaches max 2.0MPa pressure, catering to special high-pressure process demands.
- Complete displacement gradient from 0.7m³/min to 3.9m³/min, perfectly matching small, medium production lines.
(2) Energy-saving Motor & Reliable Power
Equipped with high-efficiency three-phase asynchronous motor, power marked as KW/HP (7.5HP–50HP range):
- Low energy loss, high conversion efficiency, long continuous operation life.
- Stable torque, no overload stall under full-load operation.
- Low heating value, effectively reducing unit failure rate during long-time running.
(3) Ultra-low Noise Design
- EU-8GA/11GA/15GA models: Noise controlled at 68±2dB(A), close to office noise level.
- E-18GA/22GA/30GA/37GA models: Noise 70±2dB(A).
- Integrated full sound insulation enclosure, internal noise absorption cotton + shock absorption base, can be placed directly inside production workshop without independent noise reduction room, greatly saving factory layout cost.
(4) Compact Solid Structure & Easy Installation

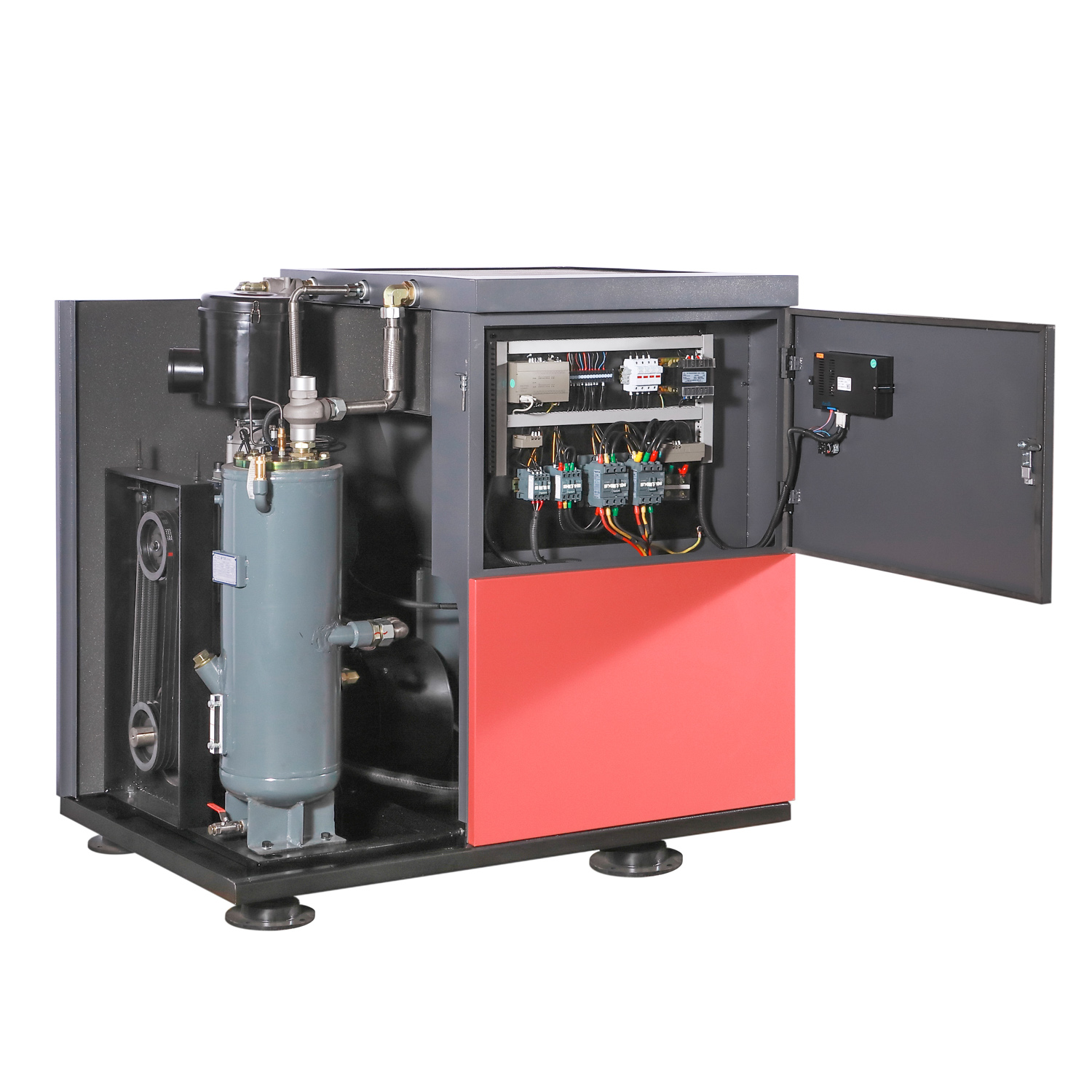

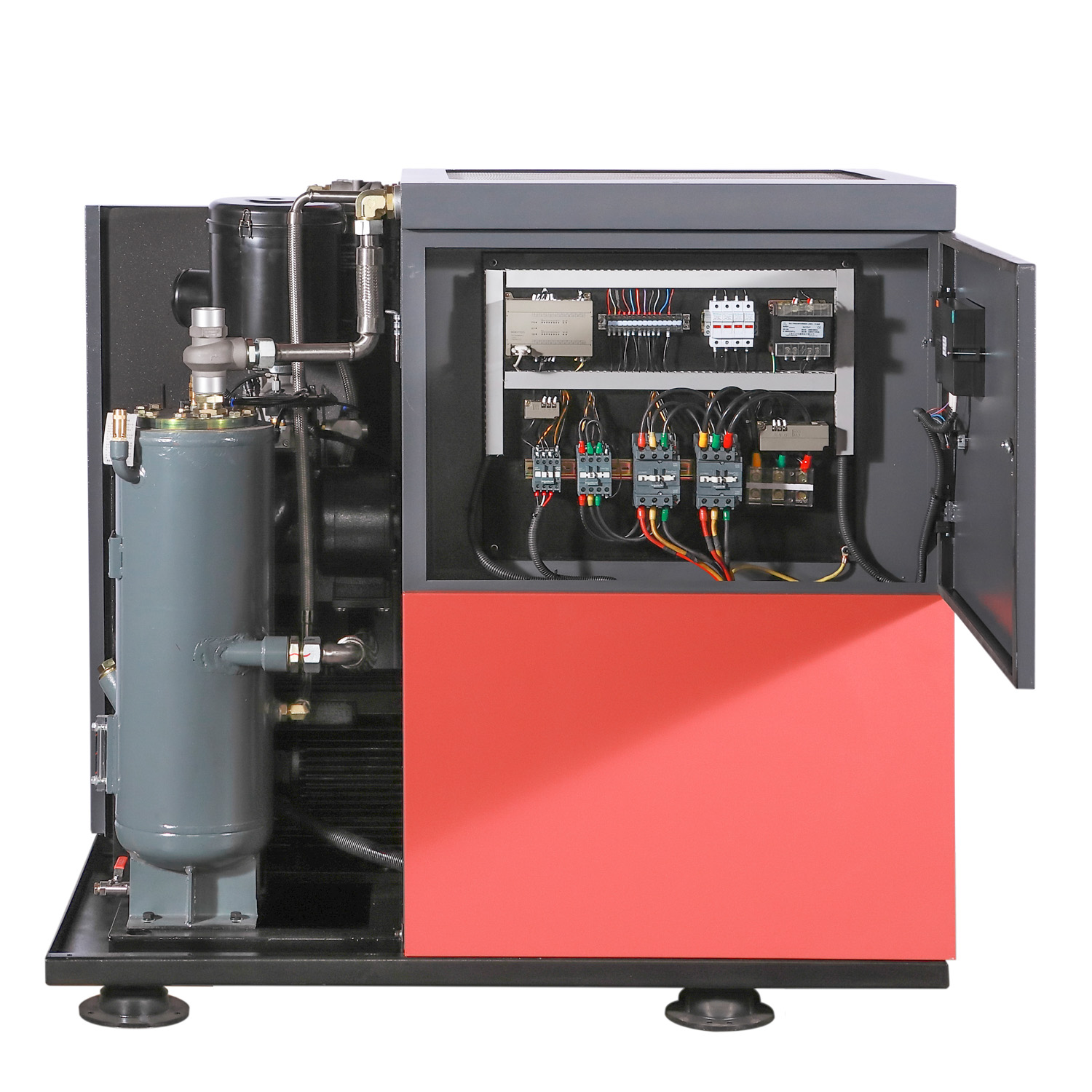

Integrated all-in-one design (host + motor + cooling system + control cabinet):
- Small size footprint: EU small models only 900×850×940mm, easy to move and place in narrow workshops.
- Robust frame structure: Unit weight ranges 230kg–850kg, thickened metal frame resists vibration deformation.
- Standard outlet interface: 3/4", 1", 1-1/4" caliber, quick connection to air pipes, no complicated transformation.
(5) Low Maintenance & Long Service Life
- Precision screw rotor with wear-resistant coating, compression efficiency stays stable for 8–10 years.
- Standard independent cooling system, strong heat dissipation, prevents high-temperature shutdown.
- Simple internal layout, quick access for oil filter, air filter, oil separator replacement; ordinary workshop workers can complete daily maintenance independently.
- Complete protective program: over-temperature, over-current, overload, phase loss automatic alarm & shutdown, effectively protect host and motor.
Technical Parameter & Product Specification
| Specifications | EU-8GA | EU-11GA | EU-15GA | E-18GA | E-22GA | E-30GA | E-37GA |
|---|---|---|---|---|---|---|---|
| Exhaust Volume / Exhaust Pressure (m³/min/MPa) | 0.7/1.3 0.5/1.6 |
1.2/1.3 1.0/1.6 |
1.7/1.3 1.5/1.6 |
2.2/1.3 1.8/1.6 |
2.6/1.3 2.2/1.6 |
3.6/1.3 3.2/1.6 |
3.9/1.6 3.0/2.0 |
| Motor Power (KW/HP) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 |
| Noise dB(A) | 68±2 | 68±2 | 68±2 | 70±2 | 70±2 | 70±2 | 70±2 |
| Dimension L×W×H (mm) | 900×850×940 | 900×850×940 | 900×850×940 | 1290×900×1190 | 1290×900×1190 | 1290×900×1190 | 1520×955×1450 |
| Net Weight (Kg) | 230 | 262 | 292 | 450 | 500 | 600 | 850 |
| Outlet Diameter | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1-1/4" |
Application
- Mechanical processing: CNC machine, pneumatic fixture, polishing & cutting equipment.
- Packaging industry: Blow molding, bottle making, bag sealing, printing machine air supply.
- Light industry: Textile loom, shoe making machinery, food filling & canning.
- Construction & hardware: Sandblasting, spray painting, pneumatic wrench, drilling tools.
- Electronic & plastic: Injection molding machine, component assembly, dust blowing cleaning.
Screw air compressors for laser cutting are widely used in sheet metal processing, metal processing, advertising production, kitchen utensils, automobiles, lamps, saw blades, elevators, metal crafts, textile machinery, grain machinery, glasses production, aerospace, medical equipment, Instrumentation and other industries.
5. Our Service Support
- Customization: Can adjust pressure, add dryer/tank integrated machine according to customer working conditions.
- Global after-sales: Supply spare parts worldwide, remote video installation & maintenance guidance.
- Quality warranty: Main screw host 5-year warranty, whole machine 1-year standard warranty.
- Technical support: Free air consumption calculation, factory layout air pipe design scheme.
Packing and delivery
Frequently Asked Questions (FAQ)
Q1 What pressure options are available?
Standard 1.3MPa, high 1.6MPa; E-37GA special model reaches max 2.0MPa, air flow 0.7–3.9m³/min for small & medium production lines.
Q2 Why is the motor energy-saving?
High-efficiency three-phase asynchronous motor with low power loss, stable full-load torque and low heat generation, extending continuous running life and lowering failure rate.
Q3 Is the machine noisy and need a soundproof room?
Noise only 68~70dB(A) with full sound insulation enclosure and shock-absorbing base; can be placed directly in workshops without extra noise reduction room.
Q4 Is installation and connection troublesome?
Integrated all-in-one compact structure, small footprint and thickened anti-vibration frame. Standard 3/4", 1", 1-1/4" air outlets enable quick pipe connection without complex modification.
Q5 How about maintenance and service life?
Wear-resistant screw rotor keeps stable efficiency for 8–10 years; independent cooling avoids overheat shutdown. Easy filter replacement, plus full protection of over-temp/over-current/phase loss auto alarm.
