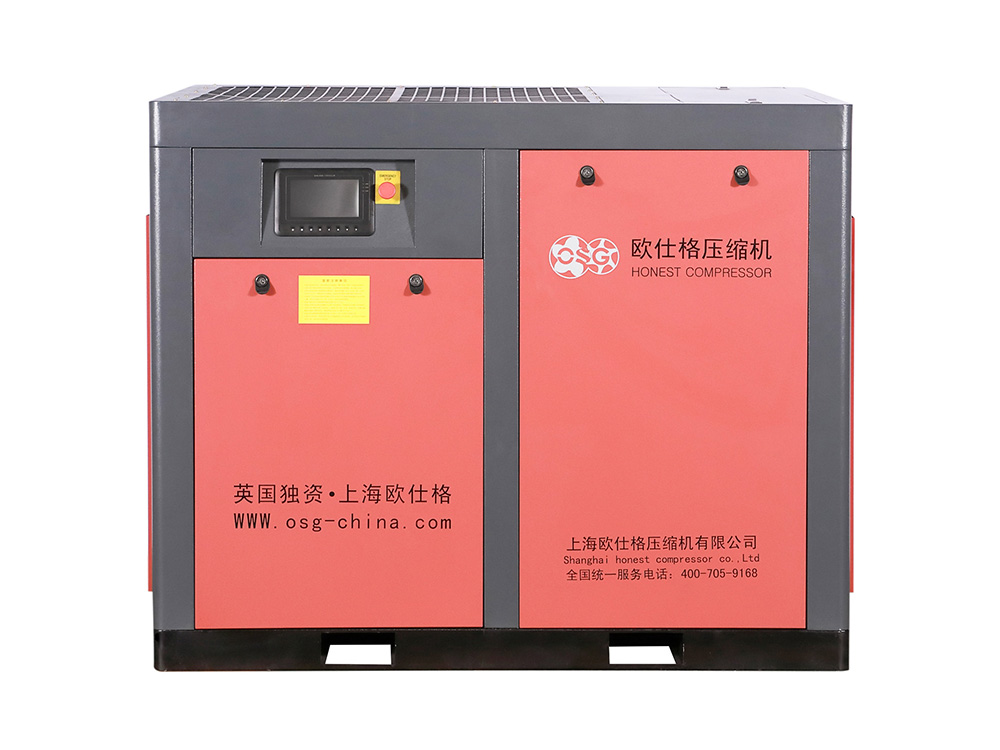

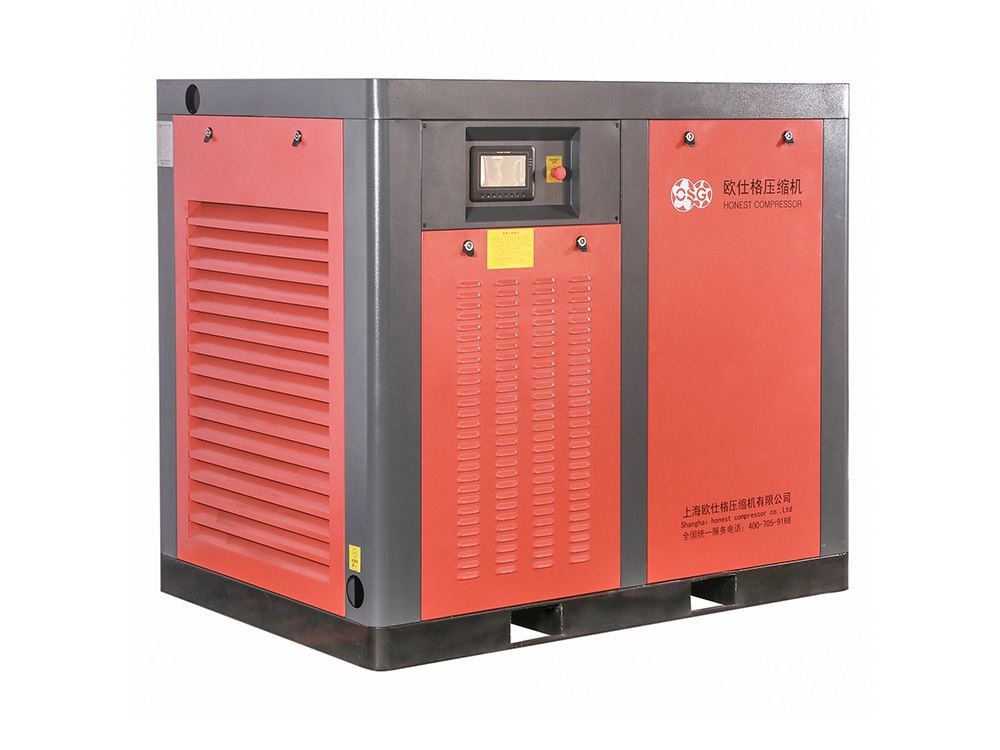

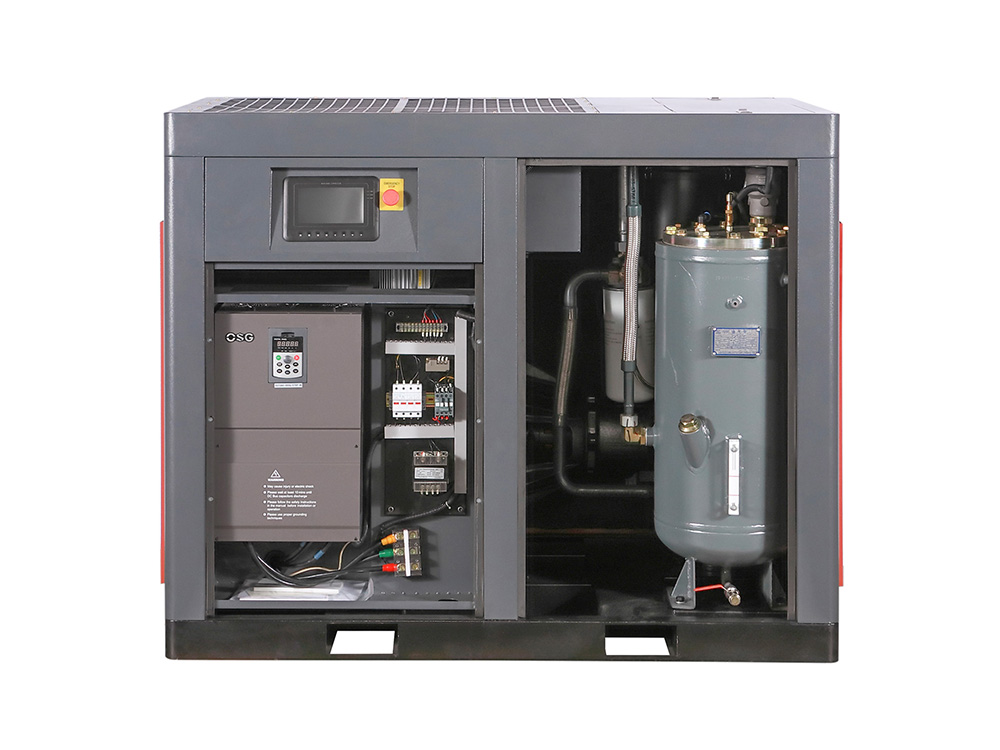

OEM Double screw air compressor with inverter and VSDPM motor for energy saving Manufacturer, Exporter
Product Description
Air Cooled or Water Cooled Screw Air Compressor / Marine Air Compressor
| Applicable Industries | Food & Beverage Factory, Construction works, Energy & Mining... |
| Showroom Location | Shanghai, China |
| Condition | 100% new |
| Type | Screw |
| Configuration | Stationary |
| Power Source | AC POWER |
| Lubrication Style | Lubricated |
| Mute | Yes |
| Brand Name | OSG |
| Voltage | Customer's Requirement |
| Warranty | 1 year |
| Working Pressure | 7 bar, 8 bar, 20 bar, 13 bar, 6 bar, 12 bar, 10 bar, 25 bar |
| Core Components | PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox... |
| Gas Type | Air |
| After-sales Service Provided | Overseas third-party support available, Video technical support |
| Certification | ISO9001, CE |
Advantages
Displacement 10% higher than ordinary piston compressor.
Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
24 hours unattended all day work, free load automatically start, full load automatically shut down.
Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
Standard exporting packing.
3000 Unit/Units per year.
Ultra efficient IE3/IE2 as per your required.
IP23/IP54/IP55 or as per your required.
CE / ISO9001.
380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ.
Product Parameters
| Model | XDV-8A | XDV-11A | XDV-15A | XDV-18A | XDV-22A | XDV-30A | XDV-37A | XDV-45A | XDV-55A | XDV-75A | XDV-90A | XDV-110A | XDV-132A | XDV-160A | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Air Delivery / Discharge Air Pressure (M³/min / Mpa) |
0.7 Mpa | 1.1 | 1.8 | 2.5 | 3.0 | 3.7 | 5.0 | 6.5 | 7.4 | 10.0 | 13.4 | 16.2 | 21.0 | 24.5 | 28.7 |
| 0.8 Mpa | 1.0 | 1.7 | 2.3 | 2.9 | 3.5 | 4.8 | 6.2 | 7.0 | 9.6 | 12.6 | 15.0 | 19.8 | 23.2 | 27.6 | |
| 1.0 Mpa | 0.9 | 1.5 | 2.0 | 2.7 | 3.1 | 4.3 | 5.6 | 6.2 | 8.5 | 11.2 | 13.8 | 17.4 | 20.5 | 24.6 | |
| 1.3 Mpa | 0.7 | 1.2 | 1.7 | 2.2 | 2.6 | 3.6 | 4.5 | 5.5 | 7.2 | 9.8 | 11.6 | 14.3 | 17.4 | 21.5 | |
| Air Supply Temperature | ≤ ambient temperature +8 ~ 15ºC | ||||||||||||||
| Motor | Power (kw/hp) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 | 160/215 |
| Start Method | VSD Starter | ||||||||||||||
| Voltage (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ / 460V-3PH-60HZ / 220V-3PH-60HZ / 400V-3PH-50HZ / 6000V-3PH-50HZ / other voltages customized) | ||||||||||||||
| Drive Method | Coupling transmission | ||||||||||||||
| Oil Content (PPM) | ≤3 | ||||||||||||||
| Connector (Inch) | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | 2" | 2" | 2 1/4" | 2 1/2" | 2" | |
| Noise (Db) ±2 | 66 | 68 | 68 | 68 | 68 | 68 | 72 | 72 | 75 | 78 | 85 | 85 | 85 | 88 | |
| Dimension (mm) | Length | 900 | 1100 | 1100 | 1400 | 1400 | 1400 | 1500 | 1500 | 1800 | 1900 | 1900 | 2500 | 2500 | 2500 |
| Width | 700 | 750 | 750 | 850 | 850 | 850 | 1000 | 1000 | 1230 | 1230 | 1230 | 1470 | 1470 | 1470 | |
| Height | 930 | 1000 | 1000 | 1160 | 1160 | 1160 | 1290 | 1290 | 1570 | 1570 | 1570 | 1840 | 1840 | 1840 | |
| Weight (kg) | 140 | 200 | 235 | 235 | 451 | 500 | 600 | 650 | 700 | 750 | 1000 | 1100 | 1600 | 1800 | |
| Model | XZV-8A | XZV-11A | XZV-15A | XZV-18A | XZV-22A | XZV-30A | XZV-37A | XZV-45A | XZV-55A | XZV-75A | XZV-90A | XZV-110A | XZV-132A | XZV-160A | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Air Delivery / Discharge Air Pressure (M³/min / Mpa) |
0.7 Mpa | 1.1 | 1.8 | 2.5 | 3.0 | 3.7 | 5.0 | 6.5 | 7.4 | 10.0 | 13.4 | 16.2 | 21.0 | 24.5 | 28.7 |
| 0.8 Mpa | 1.0 | 1.7 | 2.3 | 2.9 | 3.5 | 4.8 | 6.2 | 7.0 | 9.6 | 12.6 | 15.0 | 19.8 | 23.2 | 27.6 | |
| 1.0 Mpa | 0.9 | 1.5 | 2.0 | 2.7 | 3.1 | 4.3 | 5.6 | 6.2 | 8.5 | 11.2 | 13.8 | 17.4 | 20.5 | 24.6 | |
| 1.3 Mpa | 0.7 | 1.2 | 1.7 | 2.2 | 2.6 | 3.6 | 4.5 | 5.5 | 7.2 | 9.8 | 11.6 | 14.3 | 17.4 | 21.5 | |
| Air Supply Temperature | ≤ ambient temperature +8 ~ 15ºC | ||||||||||||||
| Motor | Power (kw/hp) | 7.5/10 | 11/15 | 15/20 | 18.5/25 | 22/30 | 30/40 | 37/50 | 45/60 | 55/75 | 75/100 | 90/120 | 110/150 | 132/175 | 160/215 |
| Start Method | VSD Starter | ||||||||||||||
| Voltage (v/hz) | 380V 3PH 50HZ (380V-3PH-60HZ / 460V-3PH-60HZ / 220V-3PH-60HZ / 400V-3PH-50HZ / 6000V-3PH-50HZ / other voltages customized) | ||||||||||||||
| Drive Method | Coupling transmission | ||||||||||||||
| Oil Content (PPM) | ≤3 | ||||||||||||||
| Connector (Inch) | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/2" | 1 1/2" | 2" | 2" | 2 1/4" | 2 1/2" | 2" | |
| Noise (Db) ±2 | 66 | 68 | 68 | 68 | 68 | 68 | 72 | 72 | 75 | 78 | 85 | 85 | 85 | 88 | |
| Dimension (mm) | Length | 900 | 1100 | 1100 | 1060 | 1060 | 1060 | 1500 | 1500 | 1800 | 1900 | 1900 | 2500 | 2500 | 2500 |
| Width | 700 | 750 | 750 | 820 | 820 | 820 | 1000 | 1000 | 1230 | 1230 | 1230 | 1470 | 1470 | 1470 | |
| Height | 930 | 1000 | 1000 | 1220 | 1220 | 1220 | 1290 | 1290 | 1570 | 1570 | 1570 | 1840 | 1840 | 1840 | |
| Weight (kg) | 140 | 200 | 210 | 235 | 296 | 336 | 443 | 466 | 834 | 917 | 1000 | 1200 | 1350 | 1400 | |
Certifications
Frequently Asked Questions
With 19 years production history, we are specialized in Rotary Screw Air Compressors. We warmly welcome your small trial order for quality or market test.
We are a professional manufacturer with a large modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
Generally 3 to 7 days; if urgent order, please contact our sales in advance.
One year for the whole machine and two years for screw air end, except consumable spare parts.
Generally, more than 10 years.
T/T, L/C at sight, D/P, Western Union, Paypal, Credit Card, etc. We also accept USD, RMB, Euro and other currencies.
